YA Series Oil Lubricated Circular Vibrating Screen

Type

Necessary Auxiliary Equipment

Capacity

10-1000TPH

Applications: Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, etc.

Share To

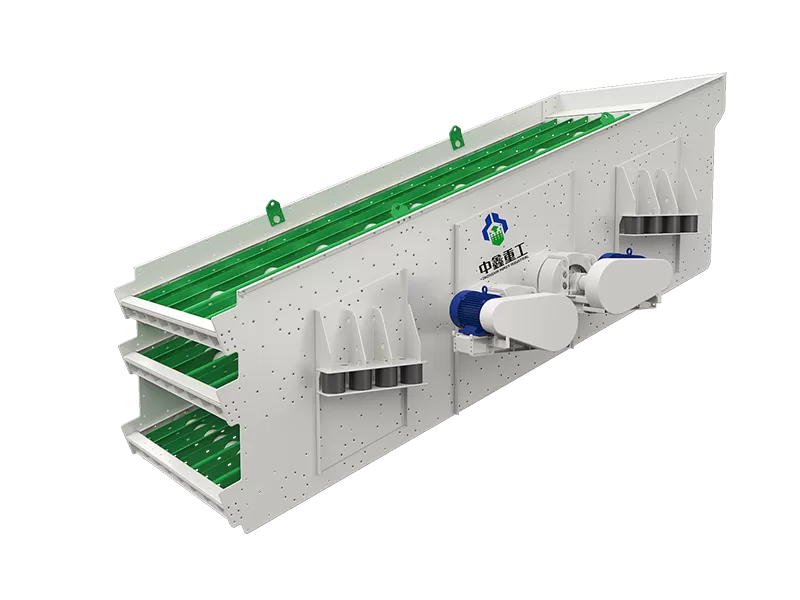

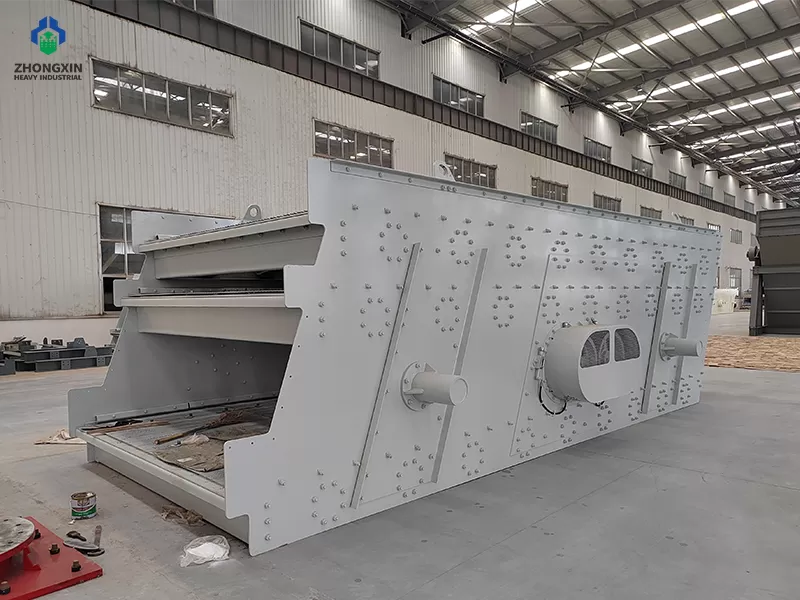

YA Series Oil Lubricated Circular Vibrating Screen – Product Overview

Our YA series circular vibrating screen is designed with internationally advanced concepts for heavy, medium, and fine screening in aggregates, mining, coal, chemical, and recycling.
The exciter features an eccentric shaft with maintenance-free oil lubrication, keeping bearing temperature rise below 40°C. The eccentric shaft is forged from high-quality steel and precision-machined. The external block eccentric design provides strong excitation force with easy amplitude adjustment via counterweight blocks. Heavy-duty bearings ensure long service life. The through-shaft design improves stability, while wear-resistant guards prevent oil chamber wear. The large oil tank allows oil changes every 1000-1500 hours.
Side plates are CNC laser-cut with no weld points. All connections use high-strength torsion shear bolts for reliability. Feed and discharge chutes feature wear-resistant liners, and large deck spacing facilitates screen replacement. The integral spring support ensures excellent rigidity with dispersed stress.

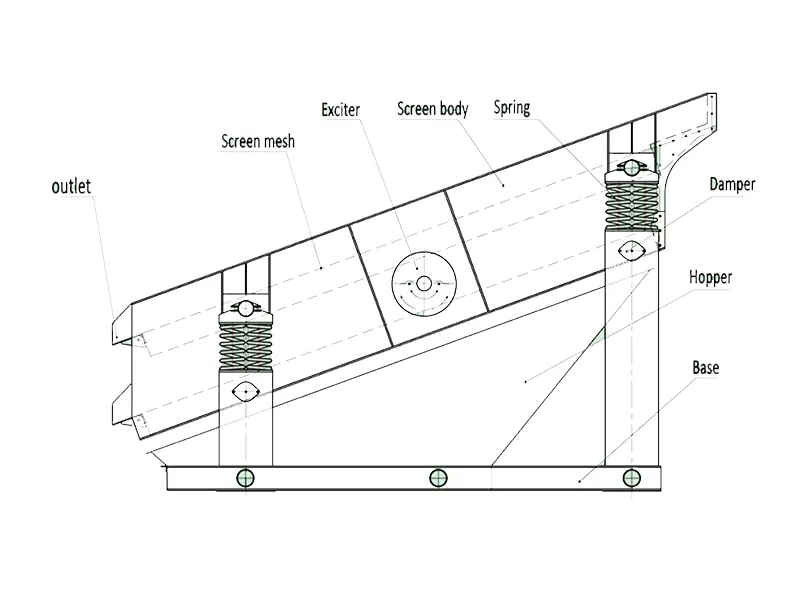

What is the working principle of the YA Series Oil Lubricated Circular Vibrating Screen?

The YA series circular vibrating screen operates on circular motion vibration generated by an eccentric shaft exciter. The motor drives the exciter through V-belts, causing the eccentric shaft to rotate at high speed and create centrifugal force, which generates full-range circular vibrating motion of the screen box.

The exciter features a through-shaft design with external block eccentric structure. As the eccentric shaft rotates, counterweight blocks produce unbalanced centrifugal forces that drive the screen box in a circular trajectory. Amplitude can be easily adjusted by adding or removing counterweight blocks to suit different materials and screening requirements.

Vibration is transmitted evenly to the screen box through precisely machined exciter mounting holes. Material fed onto the screen deck moves along the surface in a circular path, allowing smaller particles to pass through openings while larger particles travel to the discharge end.

The oil lubrication system maintains bearing temperature rise below 40°C. Oil changes are required only every 1000-1500 hours, significantly lowering maintenance costs. Abrasion-resistant guards prevent oil chamber wear, extending service life.

The screen box uses high-strength torsion shear bolts for reliability under tough conditions. Fixed integral spring supports provide rigidity while dispersing stress. Wear-resistant liners protect feed and discharge chutes. Material is continuously fed, screened, and discharged, enabling efficient screening for aggregates, mining, coal, chemical, and recycling applications.

Model	Screensize(mm)	Layers	Screen mesh(mm)	Maxfeedsize(mm)	Capacity(t/h)	Power(kw)	Vibrating frequency(r/min)	Double Amplifude(mm)
2YA1237	3700×1200	2	3-80	100	10-80	11	750-950	6-9
3YA1237	3	3-80	100	15	6-9
4YA1237	4	3-80	100	18.5	6-9
2YA1548	4800×1500	2	3-80	100	30-200	18.5	750-950	6-9
3YA1548	3	3-80	100	18.5	6-9
4YA1548	4	5-80	100	30	6-9
2YA1860	6000×1800	2	3-80	100	60-300	22	750-950	6-9
3YA1860	3	3-80	100	30	6-9
4YA1860	4	3-80	100	45	6-9
2YA2160	6000×2100	2	3-80	100	80-400	30	700-900	6-9
3YA2160	3	3-80	100	37	6-9
4YA2160	4	3-80	100	45	6-9
2YA2460	6000×2400	2	5-80	100	100-500	37	700-900	6-9
3YA2460	3	5-80	100	37	6-9
4YA2460	4	5-80	100	45	6-9
2YA2675	7500×2600	2	5-80	100	150-480	45	700-900	6-9
3YA2675	3	5-80	100	30×2	6-9
2YA2870	7000×2800	2	5-80	100	150-550	30×2	700-900	6-9
3YA2870	3	5-80	100	37×2	6-9
2YA3072	7200×3000	2	5-80	100	150-600	30×2	700-900	6-9
3YA3072	3	5-80	100	37×2	6-9
4YA3072	4	5-80	100	37×2	6-9
2YA3675	7500×3600	2	5-80	100	200-1000	37×2	700-900	6-9
3YA3675	3	5-80	100	45×2	6-9

Model

Screensize(mm)

Layers

Screen mesh(mm)

Maxfeedsize(mm)

Capacity(t/h)

Power(kw)

Vibrating frequency(r/min)

Double Amplifude(mm)

2YA1237

3700×1200

3-80

100

10-80

750-950

6-9

3YA1237

3-80

100

6-9

4YA1237

3-80

100

18.5

6-9

2YA1548

4800×1500

3-80

100

30-200

18.5

750-950

6-9

3YA1548

3-80

100

18.5

6-9

4YA1548

5-80

100

6-9

2YA1860

6000×1800

3-80

100

60-300

750-950

6-9

3YA1860

3-80

100

6-9

4YA1860

3-80

100

6-9

2YA2160

6000×2100

3-80

100

80-400

700-900

6-9

3YA2160

3-80

100

6-9

4YA2160

3-80

100

6-9

2YA2460

6000×2400

5-80

100

100-500

700-900

6-9

3YA2460

5-80

100

6-9

4YA2460

5-80

100

6-9

2YA2675

7500×2600

5-80

100

150-480

700-900

6-9

3YA2675

5-80

100

30×2

6-9

2YA2870

7000×2800

5-80

100

150-550

30×2

700-900

6-9

3YA2870

5-80

100

37×2

6-9

2YA3072

7200×3000

5-80

100

150-600

30×2

700-900

6-9

3YA3072

5-80

100

37×2

6-9

4YA3072

5-80

100

37×2

6-9

2YA3675

7500×3600

5-80

100

200-1000

37×2

700-900

6-9

3YA3675

5-80

100

45×2

6-9

Our Case

Jiaozuo Zhongxin® provides advanced crushing and screening equipment for industries involved in rock and mineral processing. From individual machines to mobile crushing units and complete processing plants, our solutions are designed to meet diverse production needs, supported by professional technical service and reliable after-sales support.

250-350 TPH Dolomite Crushing Plant

300 TPH Heavy-Duty Mountain Stone Crushing Plant in Indonesia

350TPH Gravel Crushing Plant

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our crushing and screening equipment. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

The YA series uses a maintenance-free oil lubrication system. The large-capacity oil tank keeps bearing temperatures low, requiring oil changes only every 1000-1500 hours, which significantly reduces maintenance costs.

The exciter features an external block eccentric design. Amplitude can be easily adjusted by adding or removing standard counterweight blocks, allowing operators to adapt to different material characteristics and screening requirements.

Side plates are CNC laser-cut with no weld points, eliminating welding stress. All structural connections use high-strength torsion shear bolts for superior reliability under tough conditions. Cross beam ends are machined as a whole to ensure shape tolerance.

Yes. The screen features large deck spacing that facilitates convenient screen replacement and maintenance. The modular design and accessible components allow quick parts replacement, minimizing downtime and production loss.

The YA series is suitable for heavy, medium, and fine screening applications, widely used in aggregates, metal mining, coal, chemical, and recycling industries.

The bearing temperature rise is kept below 40°C during operation. This is achieved through the large-capacity oil tank and efficient lubrication system, which effectively reduces bearing operating temperatures, extends bearing service life, and ensures reliable long-term operation.

The through-shaft exciter design eliminates intermediate transmission and protective structures, reducing the number of transmission components. This significantly improves the stability of the vibrating screen, reduces potential failure points, and ensures more reliable performance under continuous heavy-duty operation.

The exciter mounting holes on both side plates are machined using high-precision CNC boring and milling equipment. This ensures excellent coaxiality and parallelism between the mounting holes, guaranteeing proper exciter alignment, smooth vibration transmission, and reduced stress on the screen box for extended service life.

COMPREHENSIVE SERVICE & GENUINE SPARE PARTS

Zhongxin Heavy Industry provides not only high-performance equipment but also full life-cycle support solutions.

Genuine Exciter Components

Original eccentric shafts, bearings, and counterweight blocks ensure perfect fit, reliable performance, and extended service life.

Professional Maintenance Support

Our team provides installation guidance, lubrication management, and troubleshooting assistance to keep your screen running efficiently.

Quick Parts Replacement

Standardized modular design with easily accessible components allows rapid replacement of wear parts, minimizing downtime and production loss.
