XL Series Spiral Sand Washing Machine

Capacity
20-250 t/h
Max feeding size
≤10 mm

Application: Wash, classify, rid impurities, and coarse from the fine in the industries of highway, hydropower, construction.

Raw materials: Between fine-grained and coarse-grained materials

Share To
Whatsapp/Wechat:
+86-13676922906
  • WhatsAppWhatsApp
  • WeChatWeChat
Chat Online Product Inquiry
Multi Cylinder Hydraulic Cone Crusher
● 15s Quick consultation | ● 1h Technical guidance | ● 32h Quotation + drawing | ● 365d Exclusive customer service
Get price list

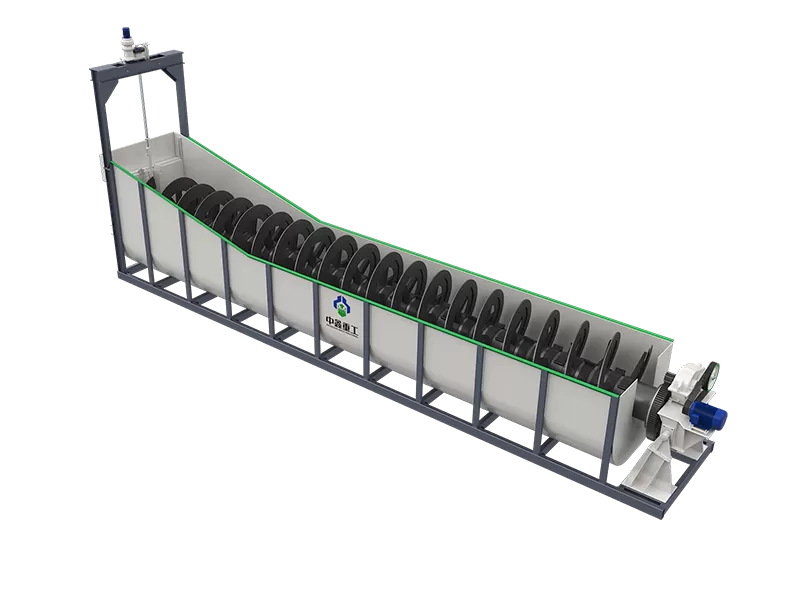

What is XL Series Spiral Sand Washing Machine?

The XL series spiral sand washer (also known as a spiral ore washer) is a high-efficiency device that utilizes the rotating propulsion principle of spiral blades to powerfully clean, remove impurities, classify, and dewater sand and gravel materials. It is primarily used to solve the problems of high mud content, high viscosity, and numerous impurities in sand and gravel aggregates, and is widely used in mining, building materials, chemical, and water conservancy and hydropower industries.

Its core advantages lie in its long cleaning path and strong agitation force, effectively removing stubborn mud and scale through the physical friction of the spiral blades. It is a core heavy-duty washing and beneficiation equipment for producing high-standard, high-cleanliness finished sand.

Powerful Desliming

The spiral blades generate high-intensity friction through forced agitation, effectively stripping away highly viscous mud.

Extremely High Cleanliness

The long washing path ensures sufficient material retention within the tank, resulting in more thorough impurity removal.

Reliable Sealing

The bearings are completely isolated from water and sand, and the robust structure significantly reduces the mechanical failure rate.

Integrated Washing and Extraction

The inclined design allows for natural dehydration of the material during the lifting process, resulting in a low moisture content in the finished product.

Low Consumption and Easy Maintenance

The blades are equipped with replaceable wear-resistant liners, eliminating the need for shaft replacement and significantly reducing maintenance costs.

What are the features of the XL Series Spiral Sand Washing Machine?

A professional high-efficiency cleaning and classifying equipment in the sand and gravel processing field, integrating cleaning and classifying functions in one. It features high cleanliness, low water consumption, space saving and strong adaptability, with convenient installation & construction and excellent production capacity, suitable for processing various sand and gravel raw materials.

What is the working principle of the XL Series Spiral Sand Washing Machine？

The XL series spiral sand washing machine utilizes the powerful stirring and friction generated by the rotation of the spiral shaft to peel off the sticky mud from the surface of the sand and gravel. In conjunction with the counter-current water flow, suspended impurities are discharged from the overflow port. At the same time, the washed material is pushed upward along the inclined trough and naturally dewatered during the process of being lifted to the high-level discharge, thereby obtaining high-quality clean finished sand.

Advantages of Jiaozuo Zhongxin Heavy Industry's XL Series Spiral Sand Washing Machine and Reasons to Choose Us

◎High Cleanliness: Excellent cleaning effect with high cleanliness of finished sand and gravel products, meeting the quality standards of high-grade sand and gravel processing.

◎Water-Saving & Space-Saving: Low water consumption during the sand washing process; multiple tanks can be designed as an integrated unit, greatly saving equipment floor space and optimizing site layout.

◎High Production Capacity & Easy Construction: Outstanding equipment capacity to meet the needs of large-scale sand and gravel processing; convenient installation and construction operations, reducing site deployment costs.

◎Integrated Cleaning & Classifying: Integrates two core functions of cleaning and classifying in one machine, realizing multi-purpose use, effectively simplifying the sand and gravel processing process and improving operational efficiency.

◎Excellent Sedimentation Effect: The supporting sedimentation structure has an outstanding effect, reducing material loss and further improving the utilization rate of sand and gravel resources.

◎Strong Working Condition Adaptability: Excellent adaptability to impact load and temperature changes, with stable equipment operation, suitable for sand and gravel processing under various working conditions.

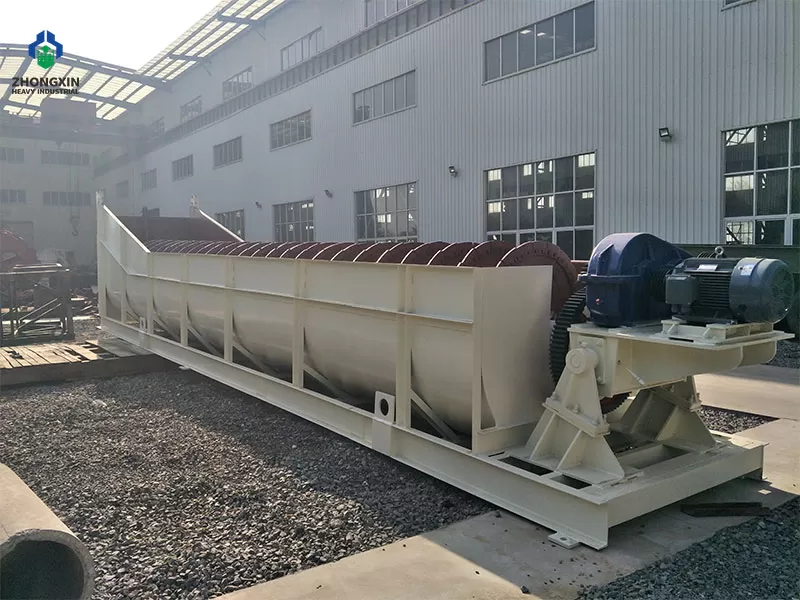

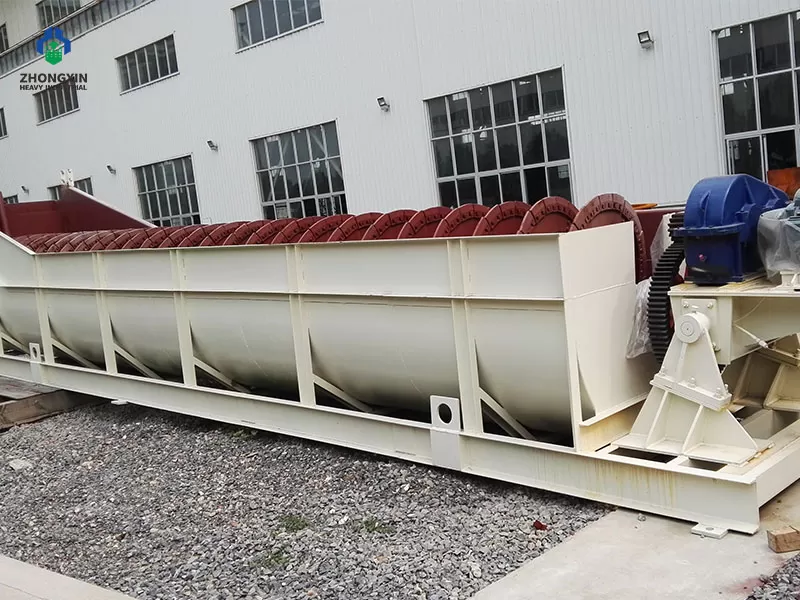

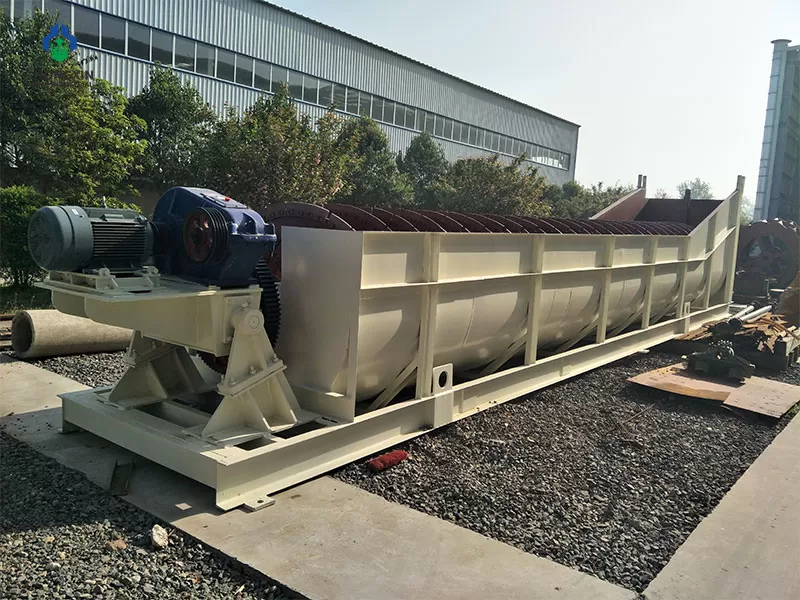

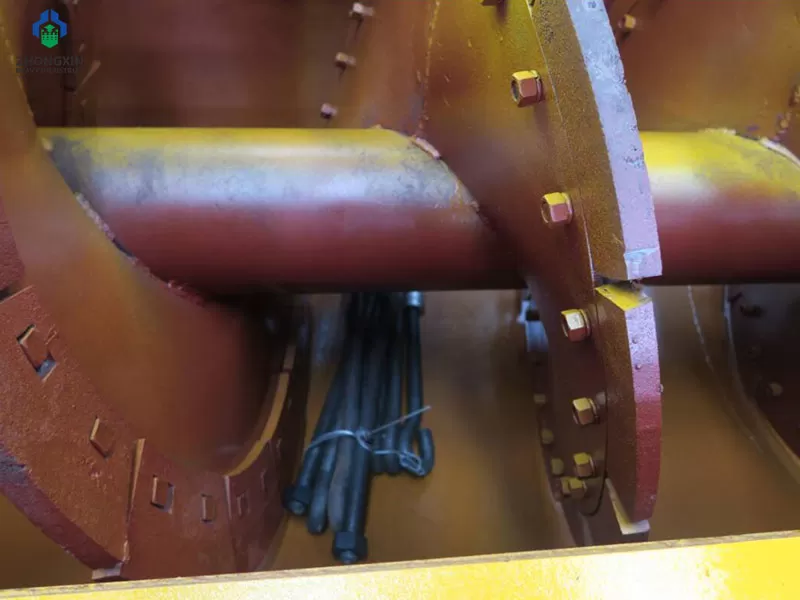

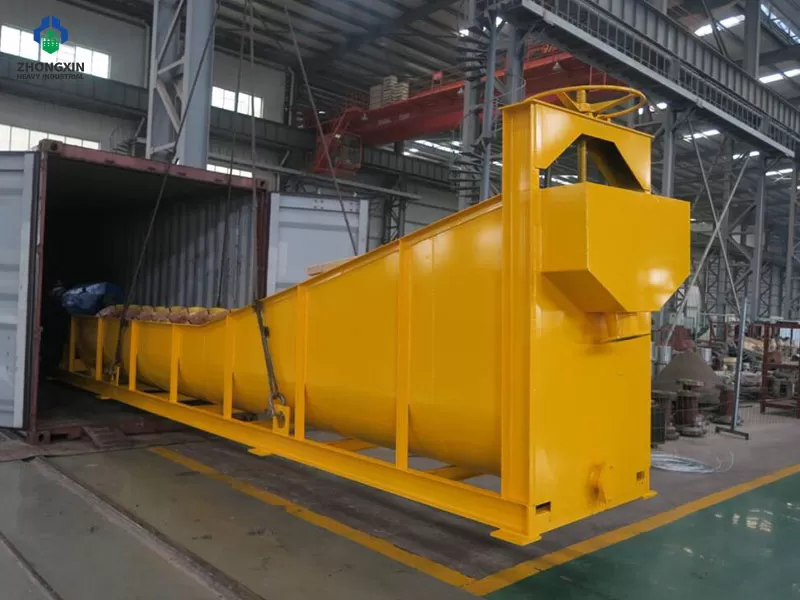

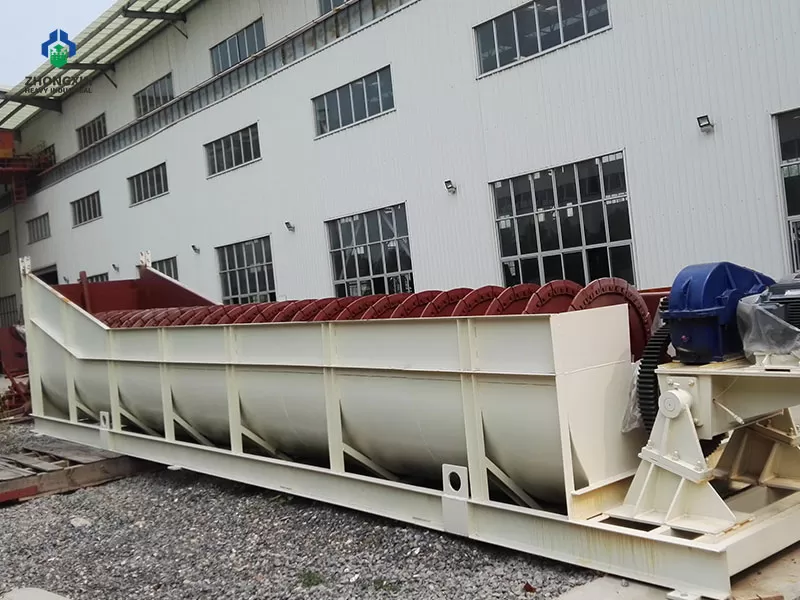

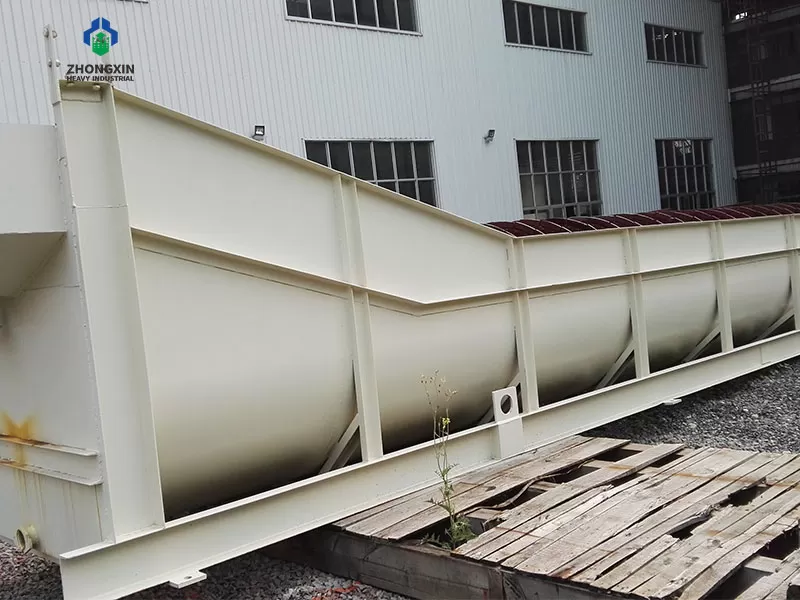

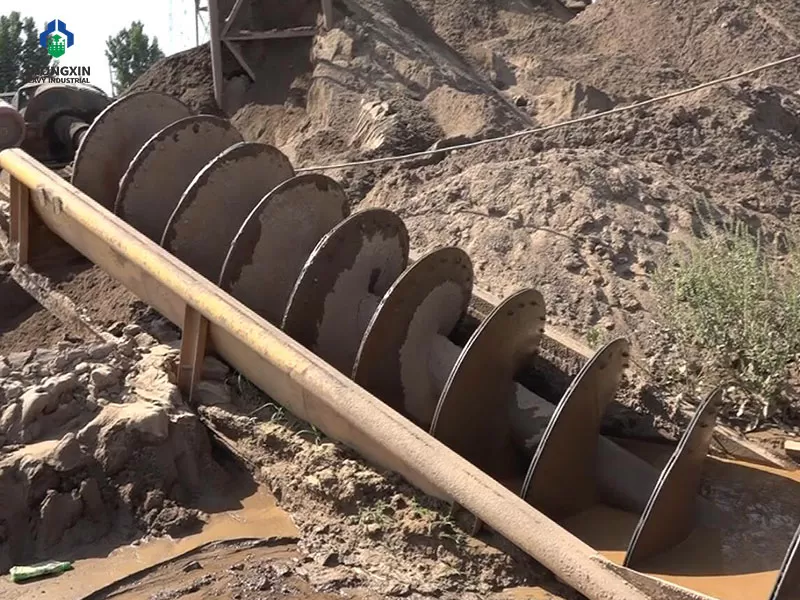

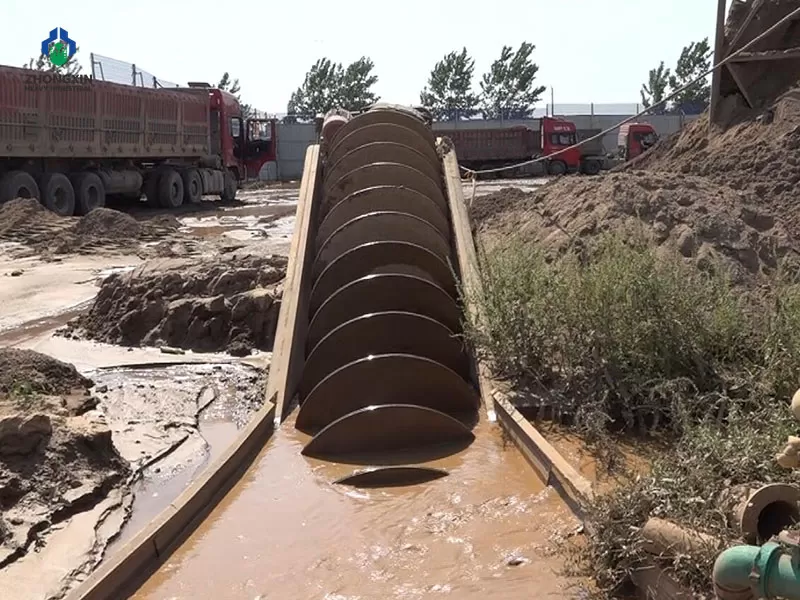

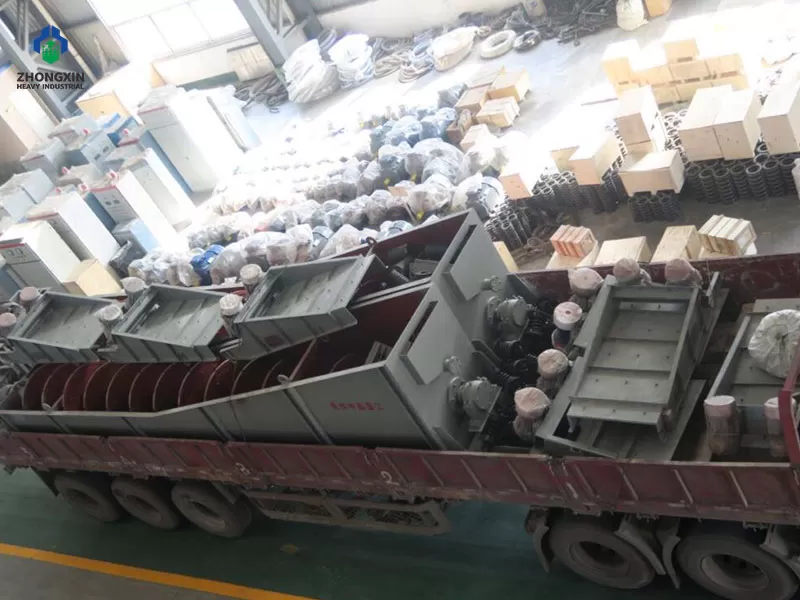

Product Photos

Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery

Specification

ModelScrew diameter(mm)Length of Chute (mm)Max feeding size(mm)Capacity (t/h)Speed (r/min)Power (kw)Water Consumption(t/h)Overall dimension(L×W×H)(mm)Weight(t)
XL5085086705≦1020385.56-608000*2343*14302.67
XL6106107225≦1040-50327.56-638000*2050*14003.80
XL7627627620≦1050-7526119-638545*2650*38625.23
XL9209208026≦10100181110-808715X1632X20754.6
2XL9209208026≦10150-180182*1120-1608715X2602X20757.9
XL111511158532≦10175181520-1509231X1833X21265.6
2XL111511158532≦10200-250182*1540-3009231X2995X212610

Our Case

Jiaozuo Zhongxin® provides advanced crushing and screening equipment for industries involved in rock and mineral processing. From individual machines to mobile crushing units and complete processing plants, our solutions are designed to meet diverse production needs, supported by professional technical service and reliable after-sales support.

150-200TPH Aluminum Stone Crushing Plant
150-200TPH Aluminum Stone Crushing Plant
1000TPH Mountain Stone Crushing Plant In Middle East
1000TPH Mountain Stone Crushing Plant In Middle East
250-350 TPH Dolomite Crushing Plant
250-350 TPH Dolomite Crushing Plant

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our crushing and screening equipment. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

It is particularly suitable for processing materials with high mud content, high viscosity, and heavy impurities (such as mountain sand and muddy ore). The forced stirring action of the spiral effectively removes mud adhering to the surface of the sand particles.

This depends on the production capacity requirements. Single-spiral models are suitable for small to medium-sized production lines; double-spiral models, due to their two parallel spiral shafts, have a higher output and a more thorough cleaning effect.

The spiral design allows the material to stay in the cleaning tank for a longer time, and the cleaning path is much longer than that of a wheel sand washer, resulting in higher cleaning purity.

The main wear-resistant part is the spiral blades. Our XL series blades are usually equipped with replaceable wear-resistant liners; after wear, only the liners need to be replaced, without replacing the entire shaft.

Yes. A proper tilt installation (typically 10°-18°) facilitates natural water backflow and upward dehydration of the sand. An angle that is too large or too small will affect cleaning efficiency and dehydration effect.

The lower bearing is constantly immersed in water and is a key area for maintenance. We use a special sealing structure and lubrication system; the seals must be checked regularly for integrity and lubricated with grease on time.

During the cleaning process, some extremely fine sand may be lost with the overflow. It is recommended to use it in conjunction with a fine sand recovery machine or dewatering screen to maximize the finished sand yield.

Compared to wheel-type washing machines, spiral sand washers require a more abundant water flow to remove a larger amount of mud, therefore water consumption is relatively higher, but the cleaning quality is more guaranteed.

COMPREHENSIVE SERVICE & GENUINE SPARE PARTS

Zhongxin Heavy Industry provides not only high-performance equipment but also full life-cycle support solutions.
