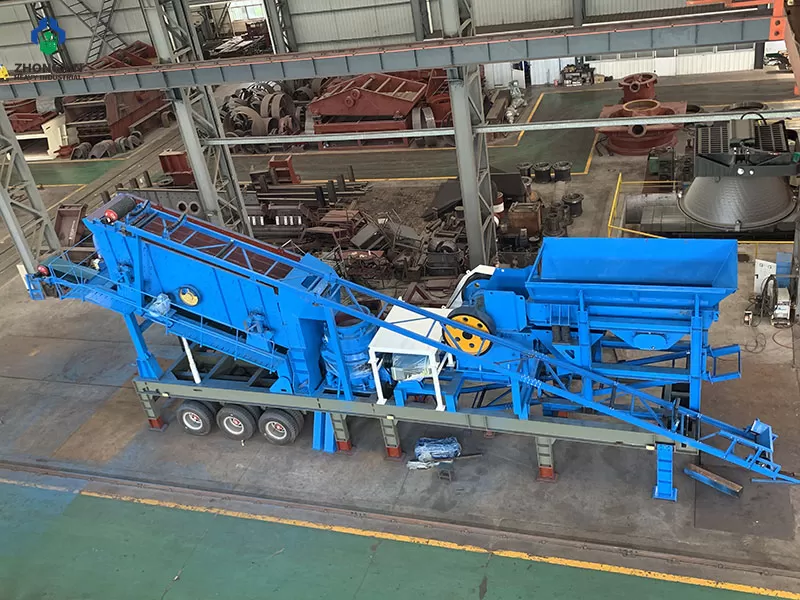

Mobile Jaw Crusher Plant

Type
Mobile Crusher
Capacity
50-180TPH

Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.

Applications: Primary crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

Share To
Whatsapp/Wechat:
+86-13676922906
  • WhatsAppWhatsApp
  • WeChatWeChat
Chat Online Product Inquiry

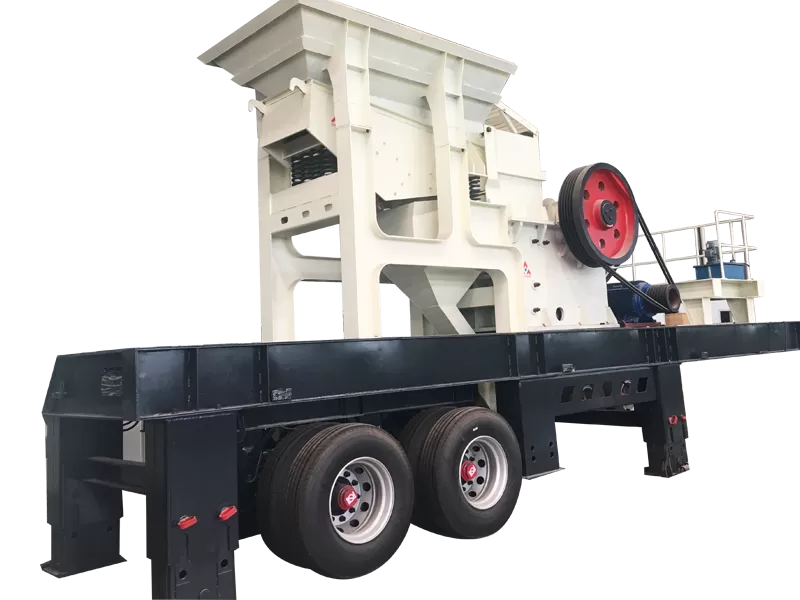

Multi Cylinder Hydraulic Cone Crusher
● 15s Quick consultation | ● 1h Technical guidance | ● 32h Quotation + drawing | ● 365d Exclusive customer service
Get price list

Mobile Jaw Crusher Plant – Product Overview

The mobile jaw crusher is an ideal primary crushing solution for hard and highly abrasive materials such as granite, basalt, and various ores. It delivers powerful crushing force and reliable performance in the first stage of crushing operations.
Equipped with heavy-duty jaw plates and an intelligent feeding system, it ensures high efficiency and low wear. The robust structure, easy transport, and quick on-site installation make it an excellent choice for large-scale quarries and coarse material processing.
The crusher operates on the proven extrusion principle, with the moving jaw applying compression, splitting, and shearing forces to break the material. Key advantages include high crushing ratio, uniform output, simple structure, low operating costs, and excellent mobility.
With its powerful crushing capability and low maintenance requirements, the mobile jaw crusher delivers consistent performance and high productivity for mining, quarrying, construction, and aggregate production.

High Mobility

Wheel-mounted design allows easy transport between job sites without foundations.

Integrated System

Combines feeding, crushing, screening, and conveying in one compact unit.

Strong Crushing Force

Handles large feed materials like granite, basalt, and various ores efficiently.

Low Maintenance

User-friendly design enables quick inspection and easy parts replacement.

Cost-Effective

Reduces transport costs by up to 50% with on-site crushing capability.

Mobile Jaw Crusher Plant Features and Advantages

The mobile jaw crusher delivers powerful primary crushing with superior mobility, integrated design, low maintenance, and cost-effective on-site processing for hard rocks and ores.

Advantages of Jiaozuo Zhongxin Heavy Industry's Mobile Jaw Crusher and reasons to choose us

1.Superior Mobility & Flexibility
The mobile jaw crusher features a wheel-mounted design that allows seamless transfer between job sites without the need for concrete foundations. Whether you are working on a construction site, quarry, or recycling project, this equipment can be deployed within hours, significantly reducing downtime and project lead times.

2.Integrated Design for Efficient Operation
The mobile jaw crusher integrates feeding, crushing, screening, and conveying functions into a single compact unit. This eliminates the need for additional support equipment and reduces both fuel consumption and labor requirements, delivering comprehensive operational efficiency.

3.High Reliability & Low Maintenance
Built with a heavy-duty chassis, durable wear-resistant components, and an intelligent control system, the mobile jaw crusher ensures a long service life with minimal maintenance needs. The user-friendly design enables quick inspection and parts replacement, maximizing uptime.

4.Cost-Effective On-Site Crushing
By bringing the crusher directly to the material source, the mobile jaw crusher eliminates costly material transport expenses, reducing logistics costs by up to 50%. Its quick installation and flexible configuration options deliver exceptional return on investment.

What is the working principle of the Mobile Jaw Crusher?

The mobile jaw crusher operates on the proven "crank-driven extrusion" principle. The electric motor drives the eccentric shaft through V-belts and pulleys, converting rotational motion into the reciprocating movement of the moving jaw. As the moving jaw approaches the fixed jaw, the toggle plate angle increases, reducing the crushing chamber volume. The material between the two jaw plates is subjected to compression, shearing, and grinding forces. When these forces exceed the material's compressive strength, the material fractures into smaller fragments.

As the moving jaw moves away from the fixed jaw, the toggle plate angle decreases. The pull rod and spring system assists in resetting the moving jaw. The discharge opening widens, allowing crushed material that meets the size requirement to fall out by gravity. Each complete forward-and-backward motion completes one crushing and discharging cycle.

This cycle repeats continuously as the motor keeps running. New material constantly enters from the top feed opening, ensuring continuous flow through the crusher. The mobile jaw crusher is specifically engineered for primary crushing, capable of handling large feed sizes and producing consistent output. Its robust construction ensures reliable performance under the most demanding conditions in mining, quarrying, and construction applications. The mobile design adds flexibility, enabling rapid site-to-site transport and quick setup without complex foundation work.

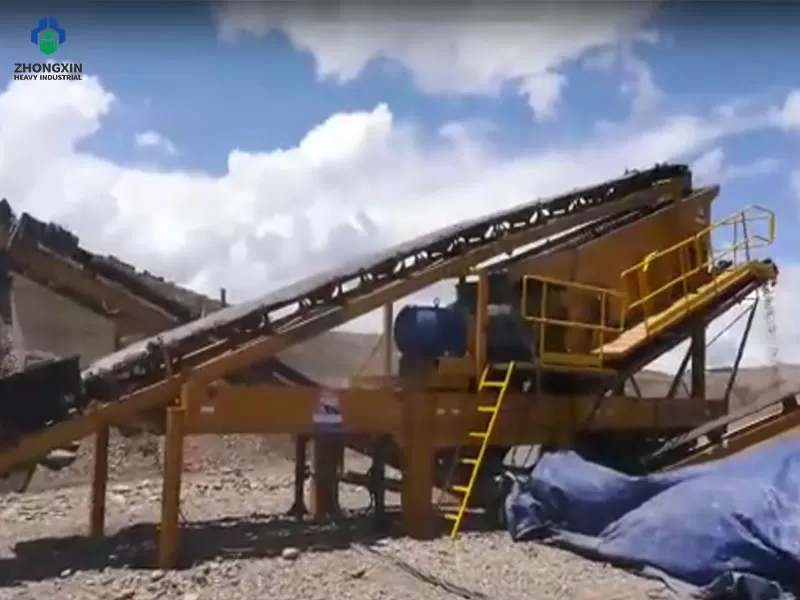

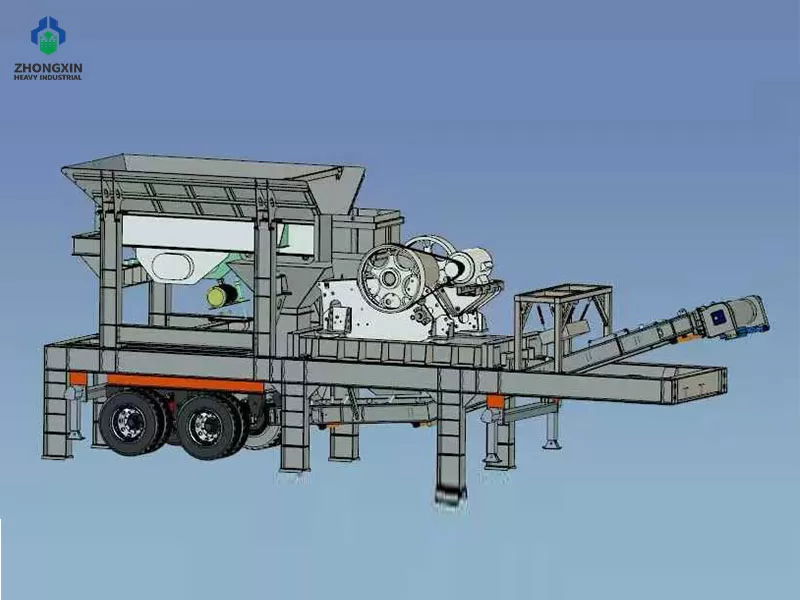

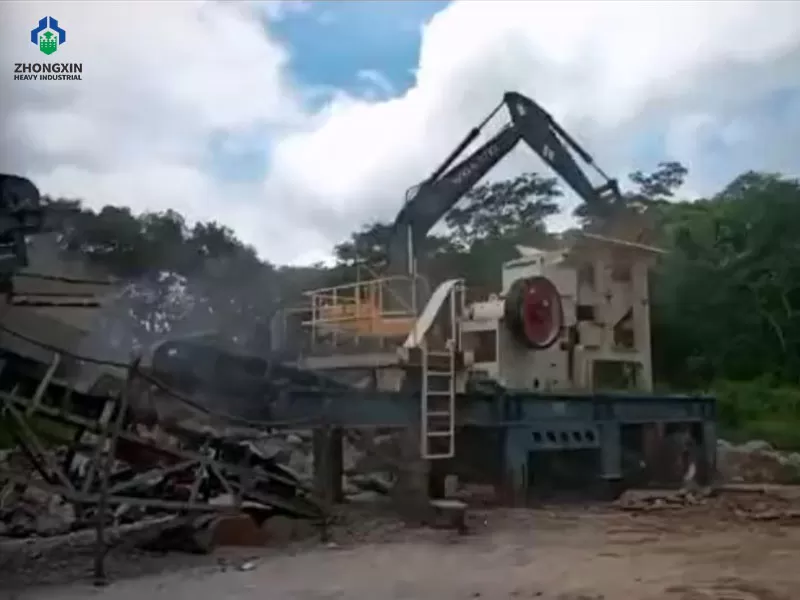

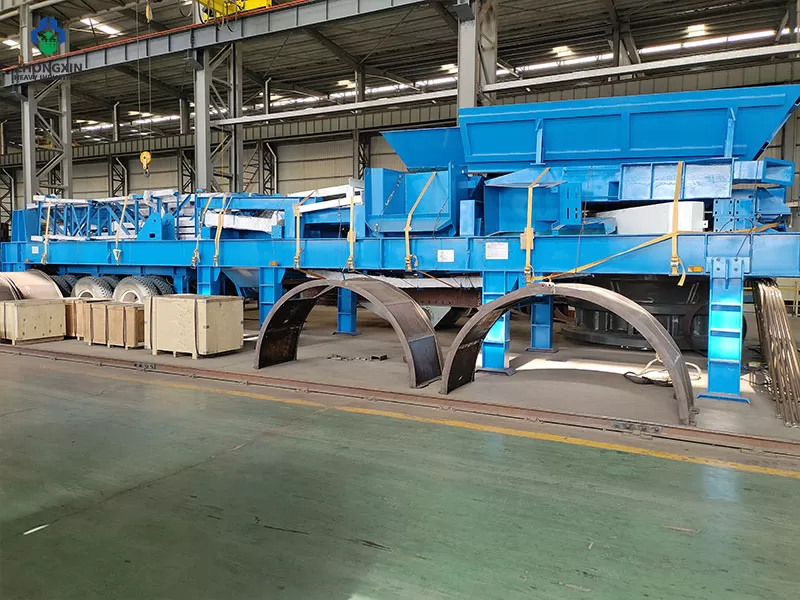

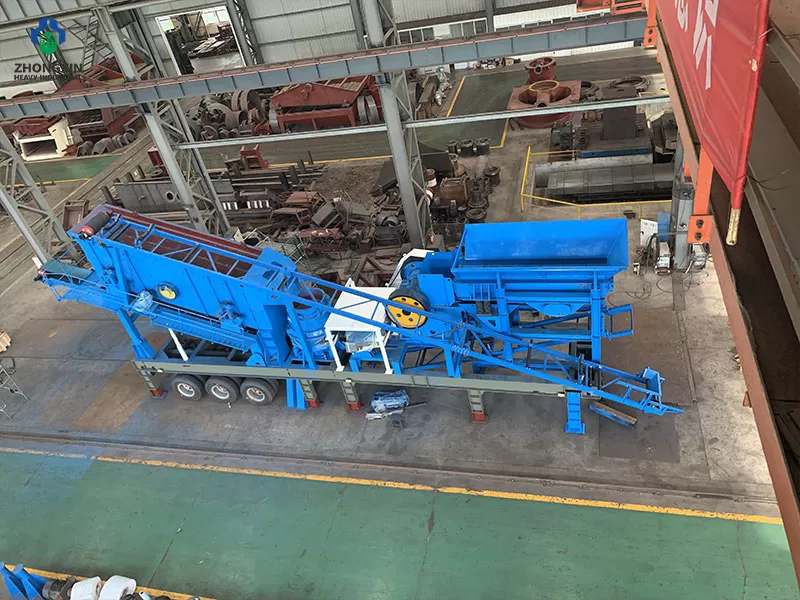

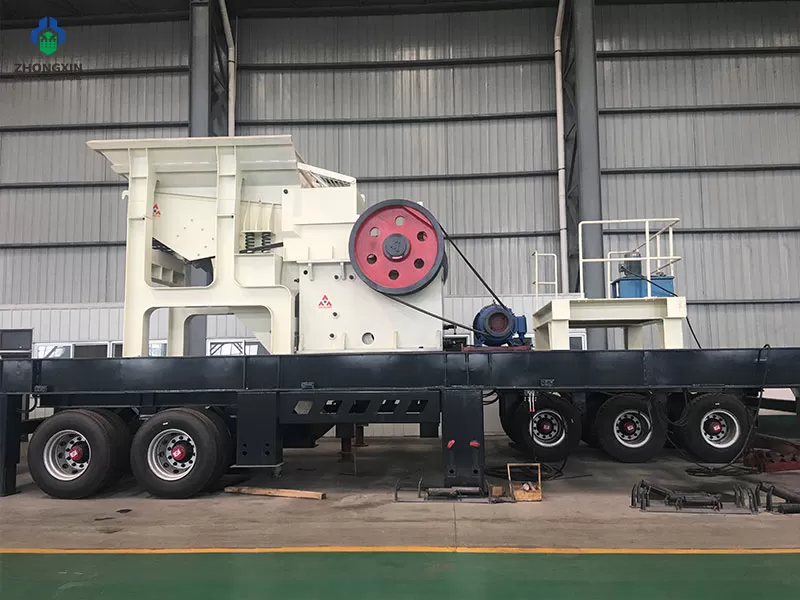

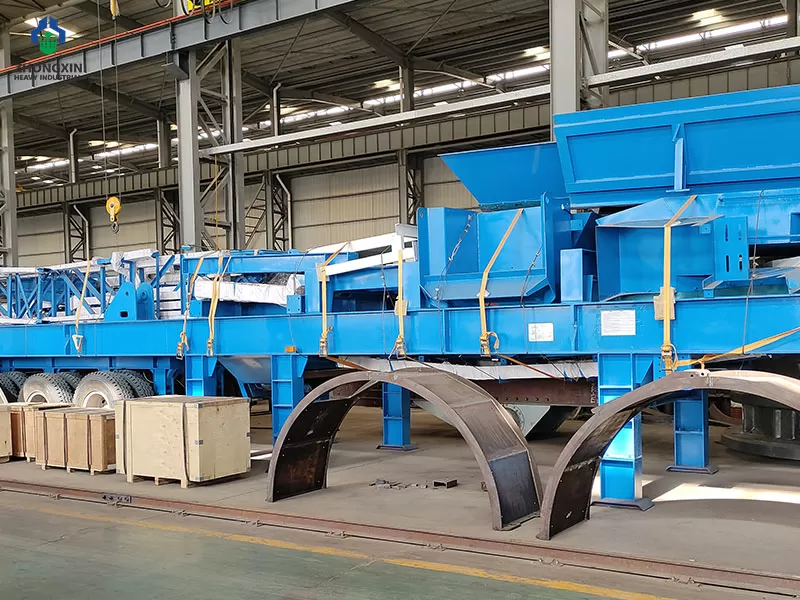

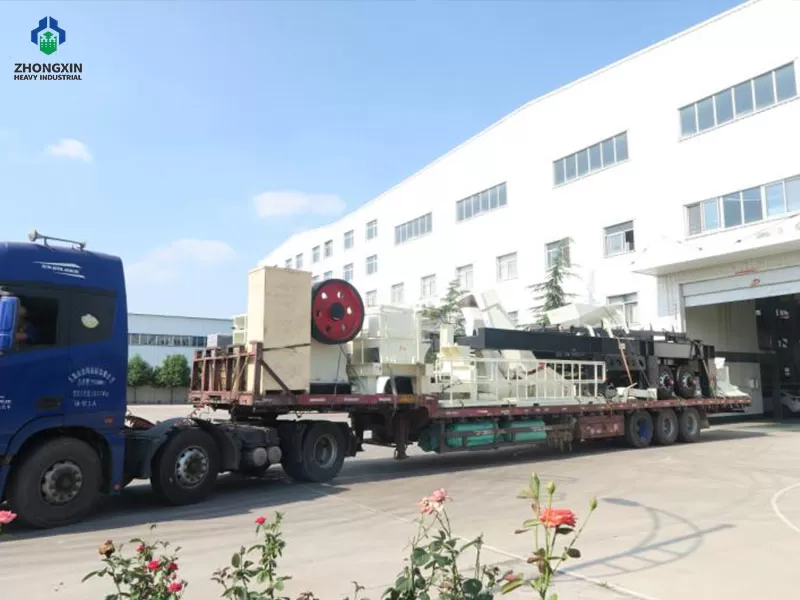

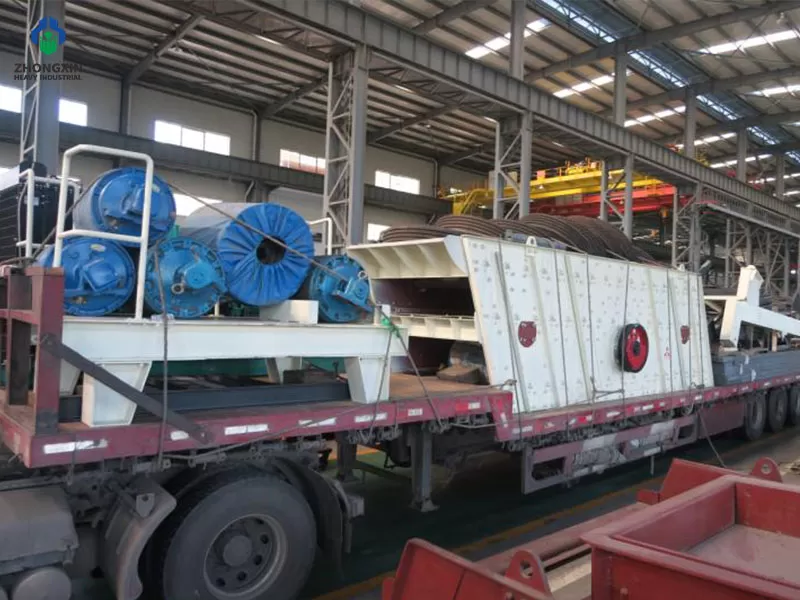

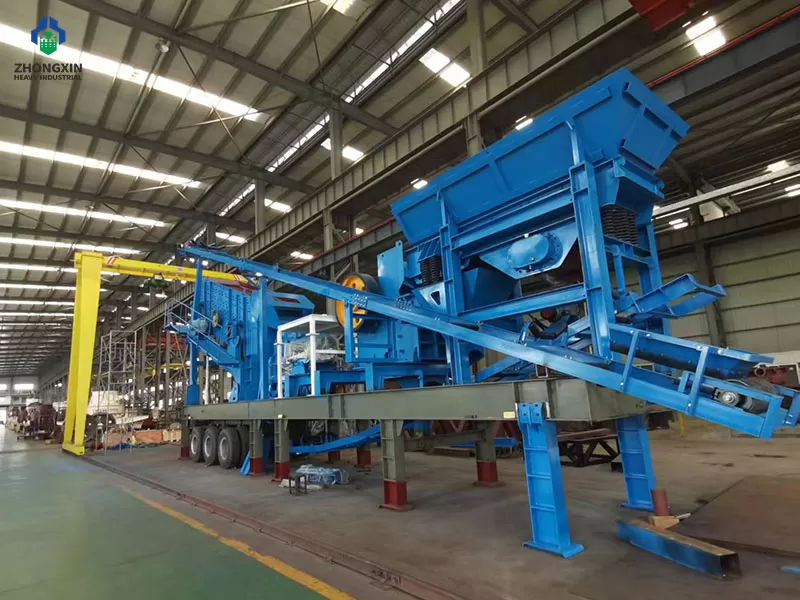

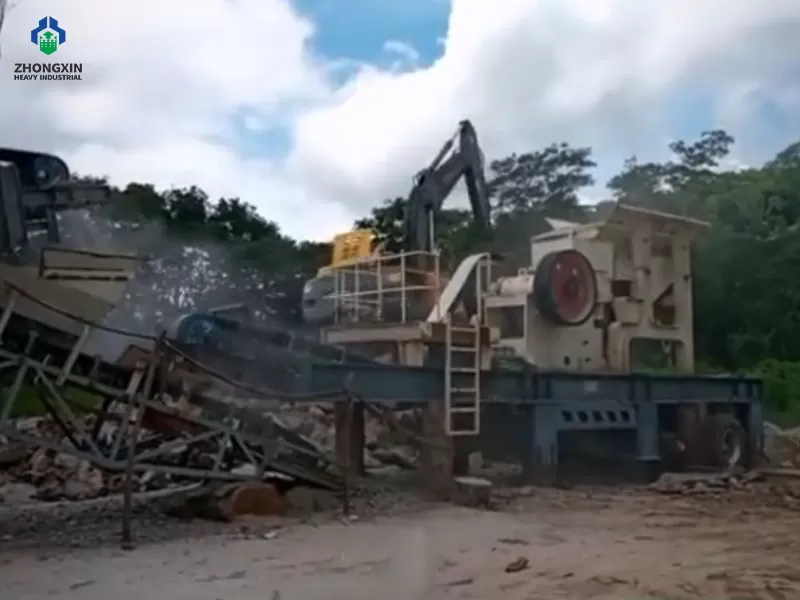

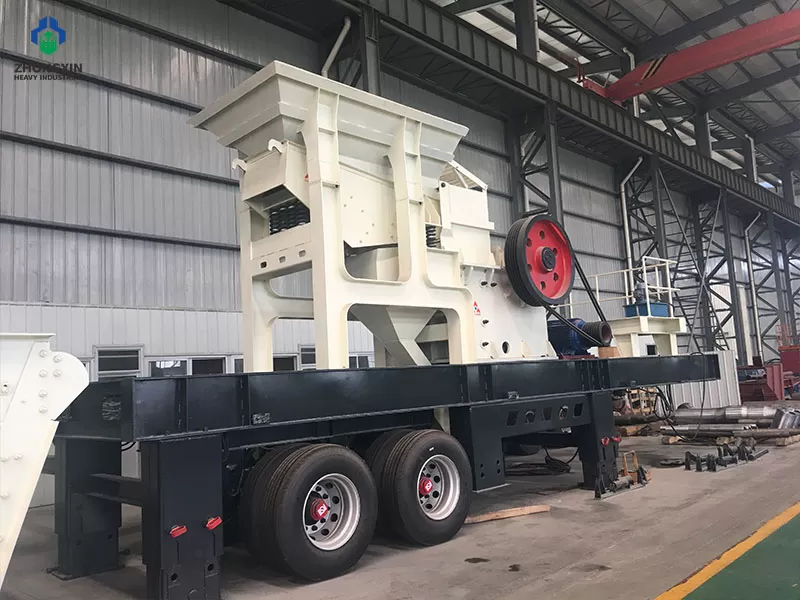

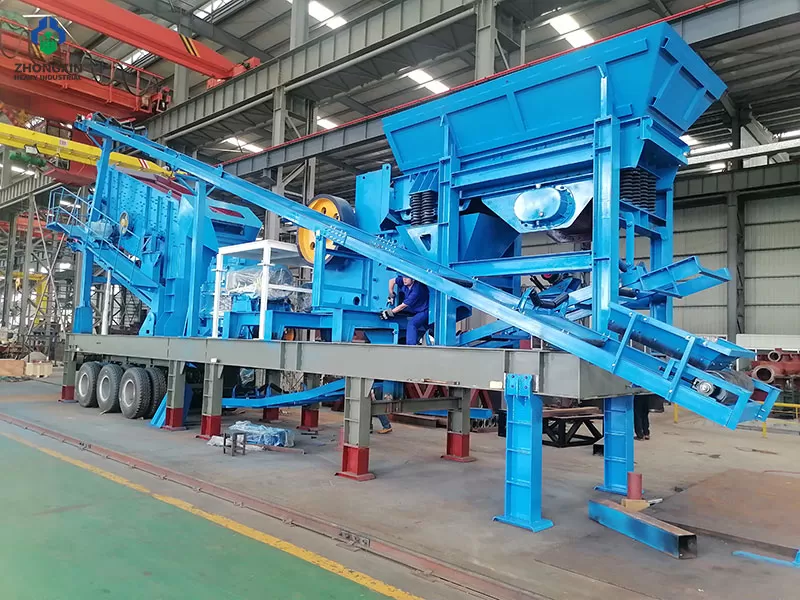

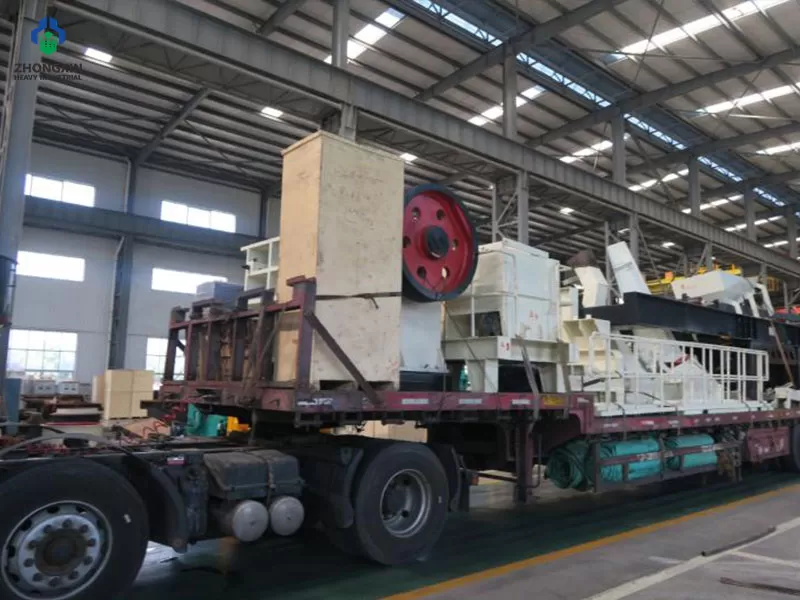

Product Photos

Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery

Specification

Mobile Jaw CrusherModelMax. Feeding
size (mm)		Capacity (t/h)Power (kw)Overall dimensions (L*W*H)(mm)Weight (t)
SYG724E57GZT072442550-1002*211870*2470*444225.3
PE500*75055
B500*8.65.5
SYG938E69ZSW389650080-1801111007X2921X517931.153
PE600*90055
B800*7.54

Our Case

Jiaozuo Zhongxin® provides advanced crushing and screening equipment for industries involved in rock and mineral processing. From individual machines to mobile crushing units and complete processing plants, our solutions are designed to meet diverse production needs, supported by professional technical service and reliable after-sales support.

350TPH Gravel Crushing Plant
350TPH Gravel Crushing Plant
250-350 TPH Dolomite Crushing Plant
250-350 TPH Dolomite Crushing Plant
350TPH Pebble Crushing Plant
350TPH Pebble Crushing Plant

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our crushing and screening equipment. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

The mobile jaw crusher is designed for primary crushing of hard and highly abrasive materials, including granite, basalt, iron ore, limestone, and various ores. It can handle large feed sizes and deliver consistent output for mining, quarrying, and construction applications.

The mobile jaw crusher can be operational within hours of arrival. Unlike fixed installations, it requires no concrete foundations or complex civil engineering work, significantly reducing project lead times.

Tire-mounted units offer a cost-effective balance between mobility and stability, ideal for projects requiring periodic relocation. Track-mounted units provide superior terrain adaptability for demanding off-road conditions and frequent site changes.

By processing material directly at the job site, the mobile jaw crusher eliminates expensive material transport and reduces fuel consumption. Its integrated design lowers labor requirements and simplifies operations, delivering exceptional cost efficiency.

We provide comprehensive after-sales support including installation guidance, operator training, routine maintenance services, and genuine spare parts supply. Our global service network ensures prompt assistance whenever needed.

Yes. The mobile jaw crusher is built with heavy-duty components and can operate in a wide range of environmental conditions. Optional heating systems are available for the lubrication system to ensure reliable startup and operation in cold climates.

Choose a mobile jaw crusher if you need flexibility, frequent site changes, or rapid deployment. Choose a fixed jaw crusher if you have a permanent site with stable operations and prioritize lower cost per ton over long-term production.

The mobile jaw crusher is equipped with multiple safety features including emergency stop buttons, belt guards, a hydraulic release system for uncrushable materials, and an intelligent control system that monitors operation and shuts down automatically in case of overload or abnormal conditions.

COMPREHENSIVE SERVICE & GENUINE SPARE PARTS

Zhongxin Heavy Industry provides not only high-performance equipment but also full life-cycle support solutions.

Service
Service
Genuine Wear Parts

Original jaw plates, toggle plates, and bearings ensure perfect fit, maximum wear life, and reliable crusher performance.

Service
Professional Technical Support

Our team provides installation guidance, operation training, and troubleshooting assistance to keep your mobile jaw crusher running at peak efficiency.

Service
Quick Parts Supply

Our global parts network ensures rapid delivery of genuine components, minimizing downtime and production loss.
