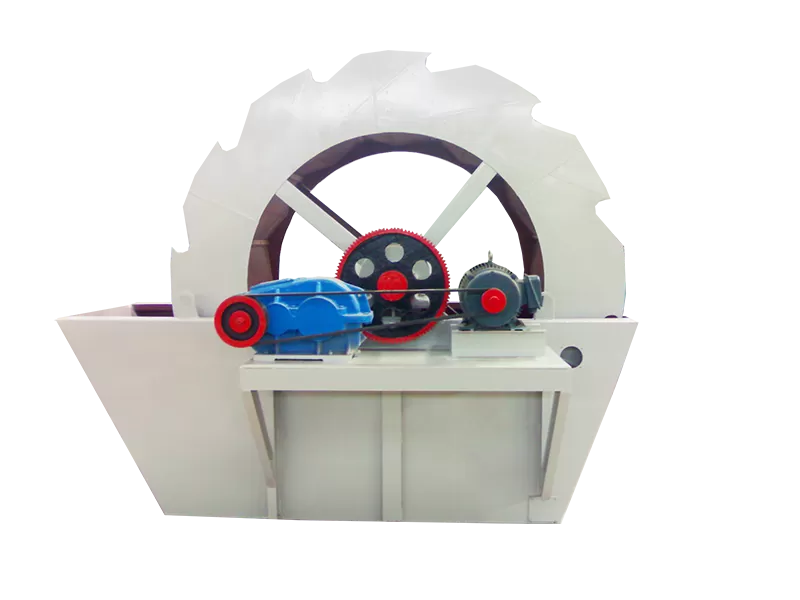

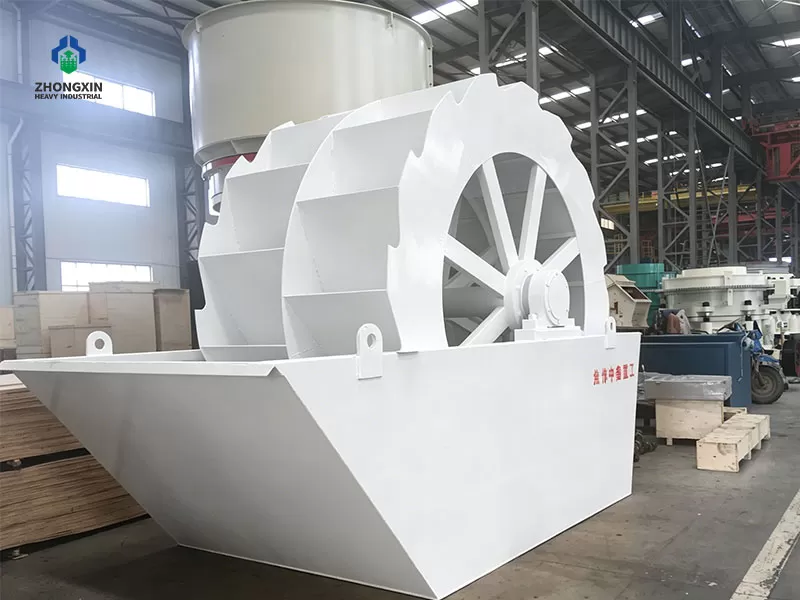

XS Series Wheel Sand Washer

Type
Necessary Auxiliary Equipment
Capacity
20--180THP

Applications: Sand Washing, Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc.

Max feeding size: ≦10 mm

Processed Materials: Limestone, River Gravel, Granite, Basalt, Quartz, Iron Ore, Diabase etc.

Share To
Whatsapp/Wechat:
+86-13676922906
  • WhatsAppWhatsApp
  • WeChatWeChat
Chat Online Product Inquiry
Multi Cylinder Hydraulic Cone Crusher
● 15s Quick consultation | ● 1h Technical guidance | ● 32h Quotation + drawing | ● 365d Exclusive customer service
Get price list

What is XS Series Wheel Sand Washer?

The XS series wheel bucket sand washing machine is a high-efficiency sand washing equipment developed by our company based on the introduction of advanced foreign technology and combined with the actual situation of the domestic sand and gravel industry. It integrates washing, dewatering, and grading functions, and is mainly used in construction sites, sand and gravel plants, glass factories, hydropower stations, and other industries for washing ores and sand. This equipment is particularly suitable for washing medium-coarse and fine sand, and is an ideal supplementary equipment used in conjunction with sand making machines, significantly improving the gradation and cleanliness of the finished sand.

External bearing seals

The transmission system is completely isolated from water and sand, preventing rust damage caused by water immersion and resulting in an extremely low failure rate.

Extremely low fine sand loss

Optimized wheel buckets and overflow weirs precisely control the washing intensity, retaining a maximum of 0.16-2mm fine sand.

Simple and easy maintenance

Only the screen is a wear-resistant part (made of highly wear-resistant material), resulting in a simple structure and significant annual savings in maintenance costs.

High finished product cleanliness

Effectively removes dirt and water vapor film from the sand particles, achieving a washing cleanliness that fully meets the standards for high-grade concrete sand.

High efficiency, energy saving, and increased production

Large-capacity washing tank + optimized impeller, high single-unit capacity

What are the features of the XS Series Wheel Sand Washer?

A core sand washing equipment in the sand and gravel processing field, featuring high efficiency, energy saving, water conservation and low loss, with a simple structure for easy operation and maintenance and outstanding cost performance. It is suitable for the cleaning operation of various sand and gravel raw materials

What is the working principle of the XS Series Wheel Sand Washer?

◎The motor drives the impeller to rotate slowly through a V-belt, reducer, and gears. Sand and gravel enter the washing tank through the feed chute, where they tumble and grind against each other under the impeller's influence, removing impurities from their surface and breaking down the moisture layer surrounding the sand particles to facilitate dehydration. During impeller rotation, a strong water flow is created by adding water, promptly carrying away impurities and lighter foreign objects, which are then discharged from the overflow outlet. The clean sand and gravel are lifted by the impeller bucket; as they rise with the impeller, water flows back into the washing tank through the mesh screen, achieving initial dehydration.

Finally, the sand and gravel are poured from the rotating impeller into the discharge chute, completing the washing process.


Advantages of Jiaozuo Zhongxin Heavy Industry's XS Series Wheel Sand Washer and Reasons to Choose Us

◎High-Efficiency Sand Washing: Excellent sand washing efficiency and stable cleaning effect, fully meeting the sand washing needs of large-scale sand and gravel processing.

◎High Cost Performance: Moderate equipment pricing and low comprehensive input cost, balancing operational performance and economic practicality.

◎Water-Saving & Low Loss: Low water consumption during the sand washing process, and effectively reducing the loss of fine sand and stone powder to improve the utilization rate of sand and gravel resources.

◎Easy Maintenance & Durable: Simple overall structural design for convenient daily inspection and maintenance; the bearing device is arranged in isolation from water and materials, greatly reducing the probability of equipment failure, extending the service life, and featuring the operational advantages of high efficiency and energy saving.

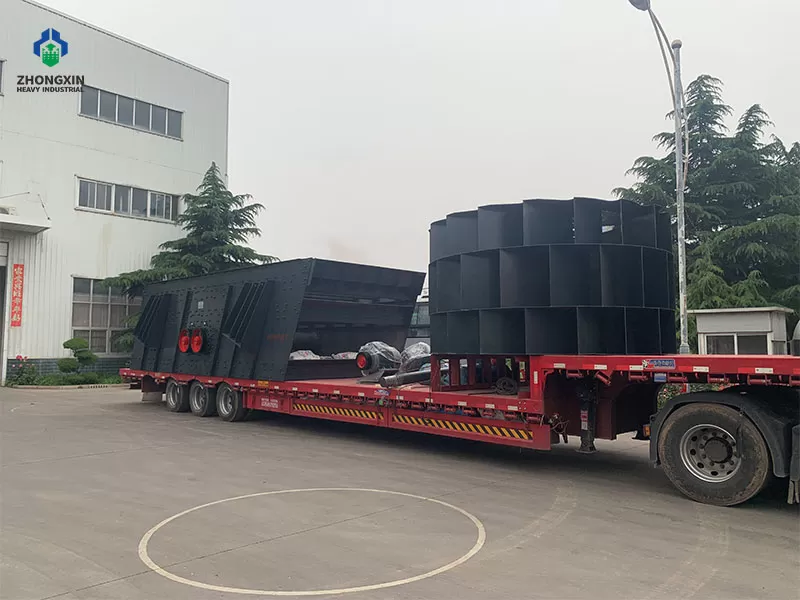

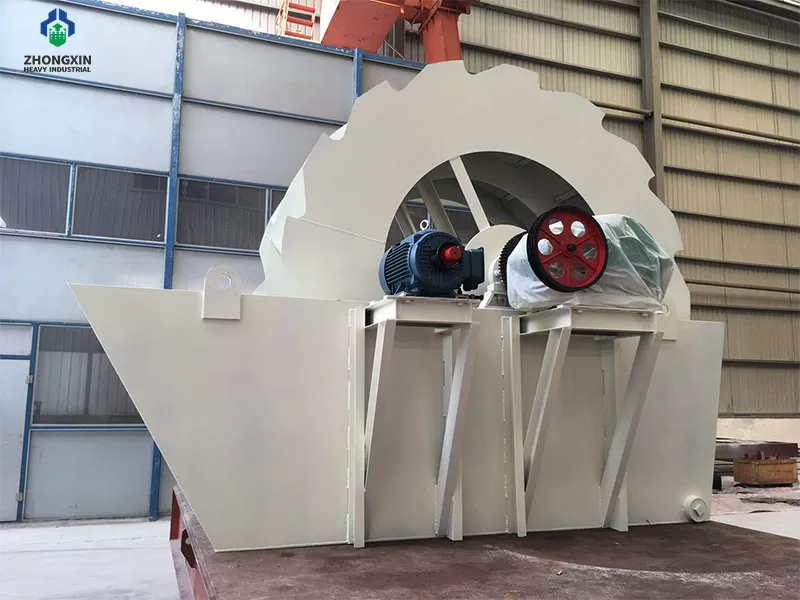

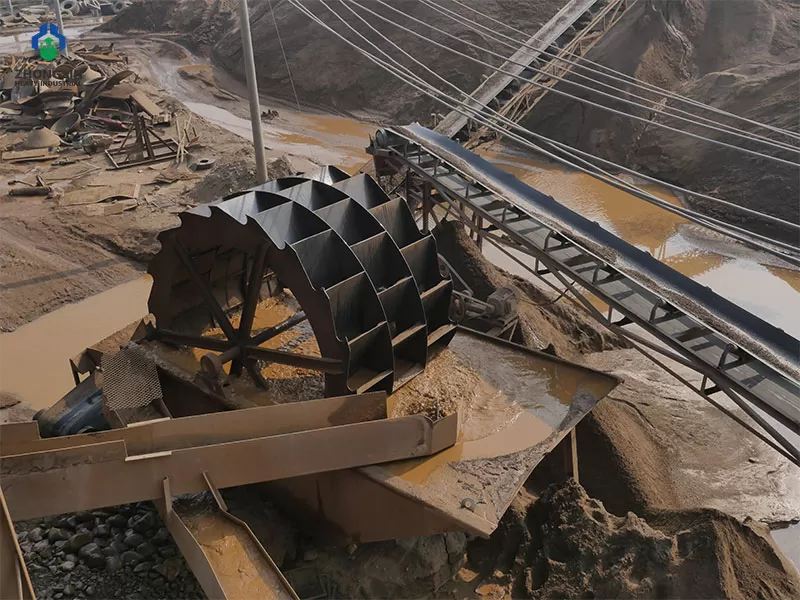

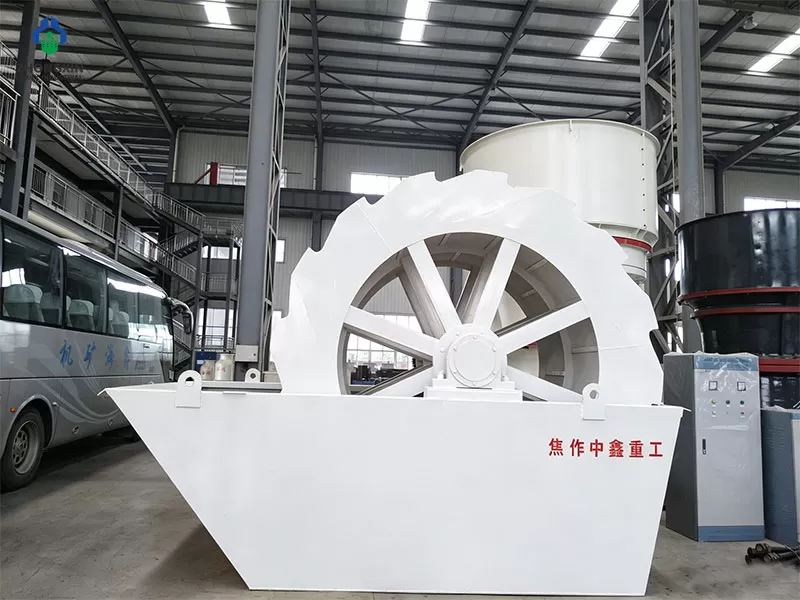

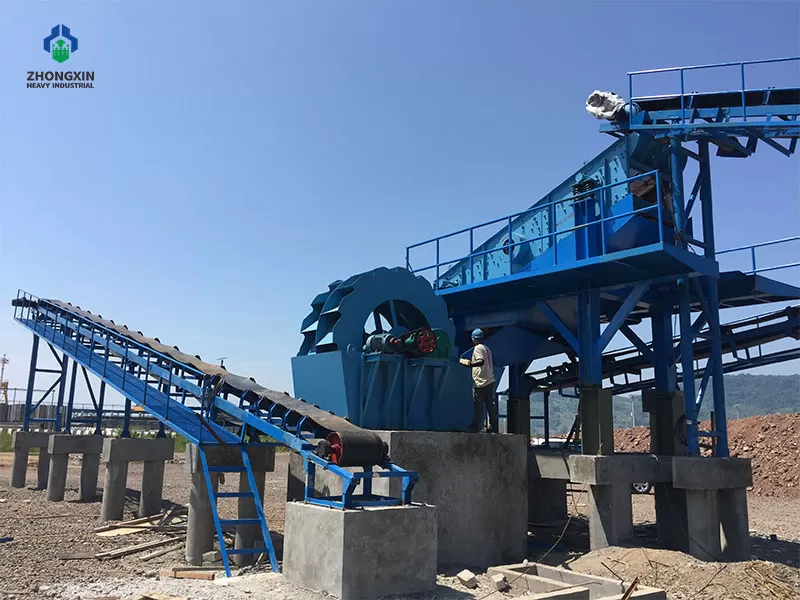

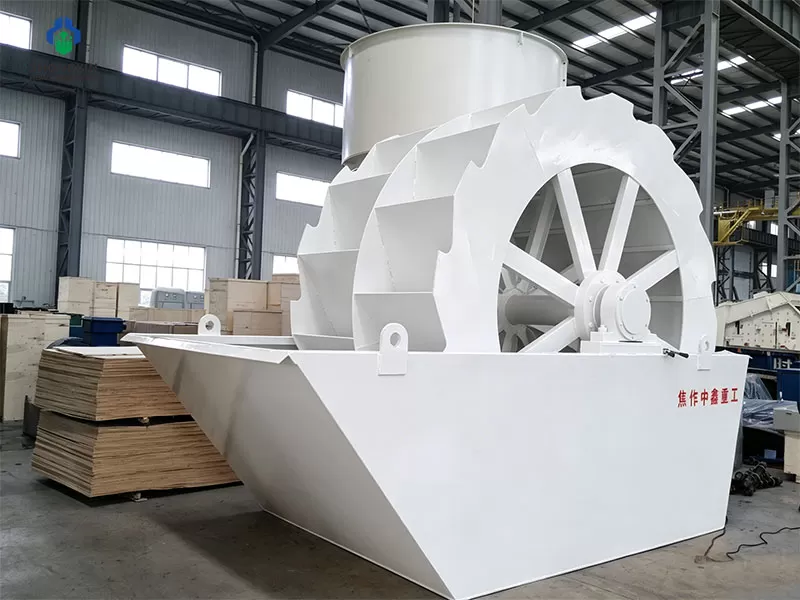

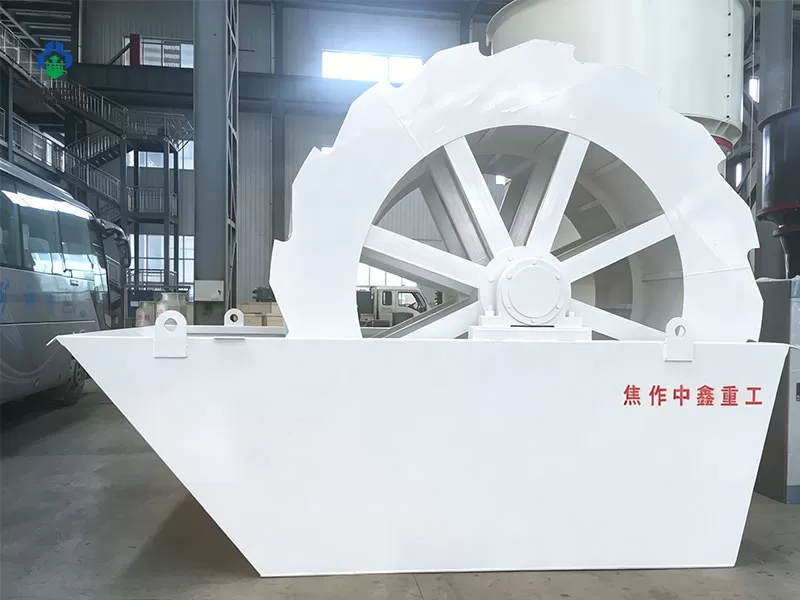

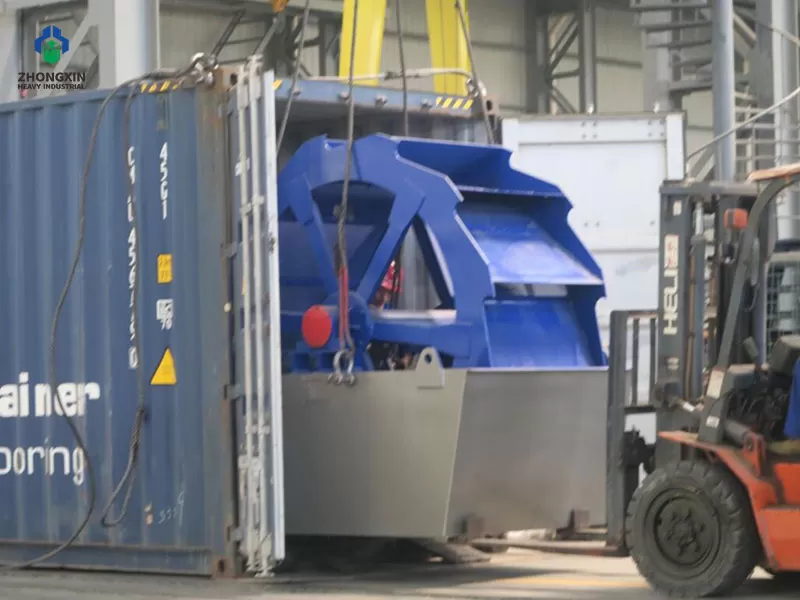

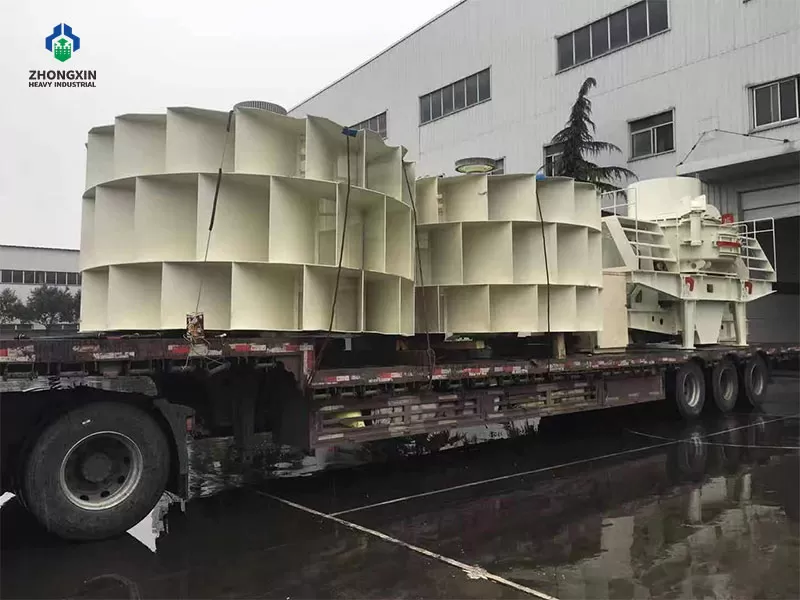

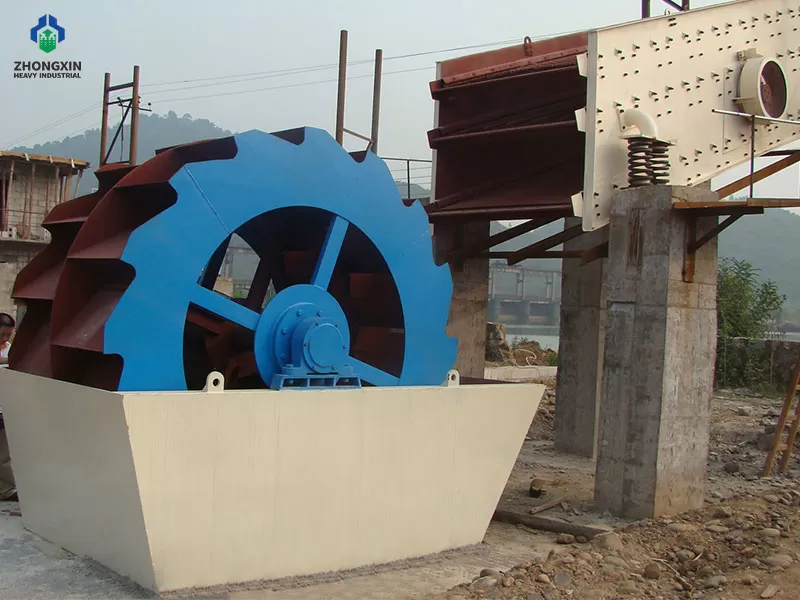

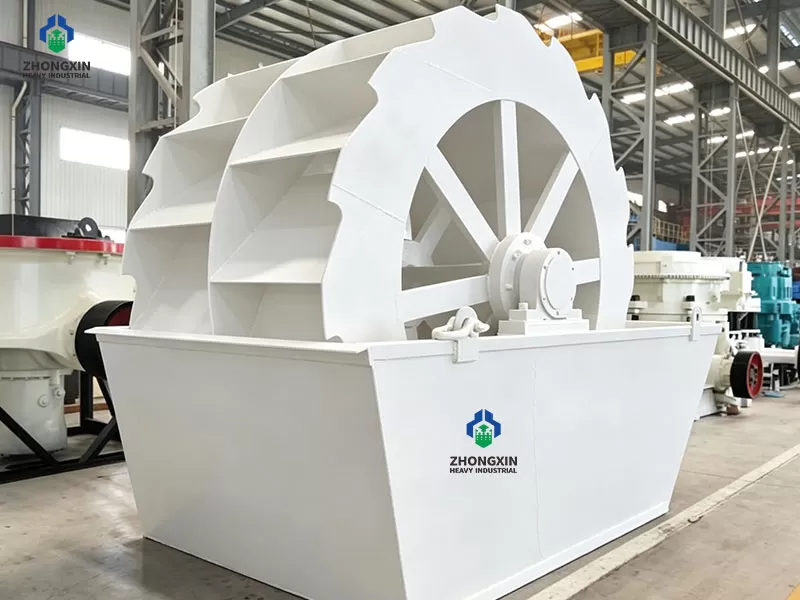

Product Photos

Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery

Specification

ModelBucket wheel diameter(mm)Max feeding size(mm)Capacity(t/h)Speed(r/min)Power(kw)Overall dimension(L×W×H)(mm)Weight(t)
XS26002600≤1020-502.55.53550X2080X26502.67
XS2600II2600≤1030-702.55.53550X2080X26502.9
XS28002800≦1050-1001.2113964x2137x28953.98
XS32003200≤1080-1201.2154346x2934x33457.27
XS36003600≤10120-1801154355X4505X38109.43

Our Case

Jiaozuo Zhongxin® provides advanced crushing and screening equipment for industries involved in rock and mineral processing. From individual machines to mobile crushing units and complete processing plants, our solutions are designed to meet diverse production needs, supported by professional technical service and reliable after-sales support.

250-350 TPH Dolomite Crushing Plant
250-350 TPH Dolomite Crushing Plant
300 TPH Heavy-Duty Mountain Stone Crushing Plant in Indonesia
300 TPH Heavy-Duty Mountain Stone Crushing Plant in Indonesia
350TPH Gravel Crushing Plant
350TPH Gravel Crushing Plant

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our crushing and screening equipment. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

The equipment consists of an impeller, reducer, support frame, and water tank. The motor drives the large impeller to rotate slowly in the water tank via the reducer, while the sand tumbles and is washed by water inside the bucket.

The wheel sand washing machine has a simple structure, extremely low fine sand loss rate (due to the slow impeller speed), and the transmission parts are isolated from water and sand, resulting in a low failure rate and significant water and electricity savings.

It is suitable for scenarios with medium mud content and high requirements for the gradation of finished sand, such as river sand washing, construction sand making, and concrete mixing plant feeding.

The screen is a wear part, but we use high-strength manganese steel or polyurethane material, which has strong wear resistance. The screen is bolted, making replacement very convenient.

The impeller drive bearing assembly is completely isolated from water and the material being washed. This design effectively prevents the bearings from rusting or being damaged due to water immersion or sand contamination.

During the rotation and lifting of the impeller bucket, the sand undergoes a natural dehydration process. If extremely dry sand is required, it is recommended to use a high-frequency dewatering screen at the discharge end.

The main difference is in output. A single impeller bucket is suitable for small factories, while double or triple impeller buckets (such as the 2XS and 3XS series) significantly increase processing capacity and are suitable for large-scale sand and gravel production lines.

It is an energy-saving device. Due to the slow impeller speed and the operation through physical scooping, its energy consumption is typically only 50%-70% of that of a spiral type for the same processing capacity.
