XHP Multi Cylinder Hydraulic Cone Crusher

Input Size
95-353MM
Capacity
90-1200TPH

Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications: Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy.

Share To
Whatsapp/Wechat:
+86-13676922906
  • WhatsAppWhatsApp
  • WeChatWeChat
Chat Online Product Inquiry

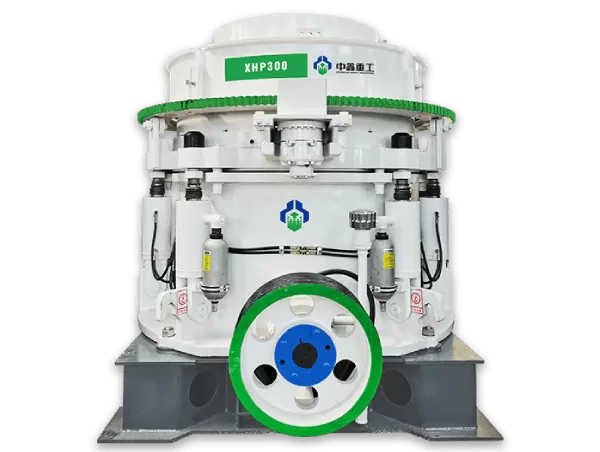

Multi Cylinder Hydraulic Cone Crusher
● 15s Quick consultation | ● 1h Technical guidance | ● 32h Quotation + drawing | ● 365d Exclusive customer service
Get price list

What is Multi Cylinder Hydraulic Cone Crusher?

The XHP series hydraulic cone crusher is suitable for crushing hard and medium-hard ores, such as iron ore, copper ore, limestone, quartz, granite, and sandstone.
In a crushing circuit, it is typically positioned after a primary jaw crusher or gyratory crusher to perform secondary and tertiary crushing.
As a new-generation high-efficiency cone crushing equipment, it features core advantages of low energy consumption and high crushing force, and is developed based on cutting-edge technologies. It not only greatly improves operational efficiency and production capacity, but also effectively expands the equipment application scope with excellent crushing performance.

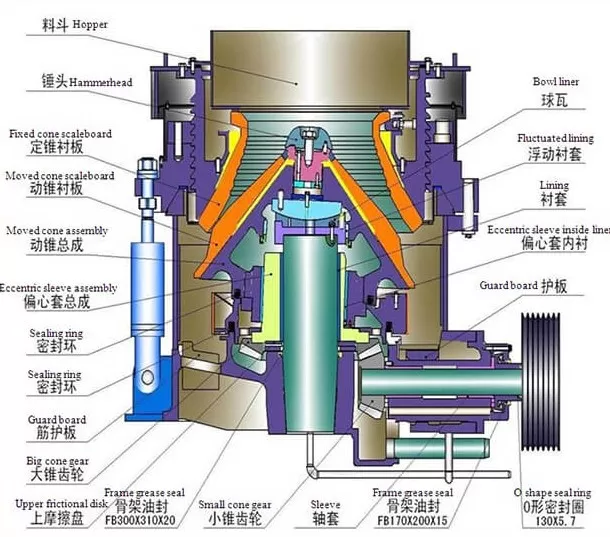

The XHP hydraulic cone crusher is primarily composed of the frame, pulley, drive shaft, eccentric sleeve, crushing cone, adjustment sleeve, adjustment mechanism (including the locking nut, locking cylinder, hydraulic motor, etc.), hydraulic safety cylinder, electric motor, lubrication station, and hydraulic station.

High crushing efficiency

Cone crushers can achieve a reduction ratio of up to 6:1 in secondary and tertiary applications.

Uniform product size

The crushing action produces cubical-shaped aggregate.

Hydraulic Overload Protection

If uncrushable material enters the chamber, the hydraulic system automatically lowers the mantle to allow the object to pass without damaging the crusher.

Easy adjustment and maintenance

The CSS can be adjusted remotely and under load, allowing operators to fine-tune product size without stopping production.

Low operating cost

With durable wear parts and efficient design, cone crushers offer a low cost per ton compared to other crusher types.

What are the features of the XHP hydraulic cone crusher?

Multi-cylinder cone crushers use multiple hydraulic cylinders to provide more precise control and higher crushing force.

Advantages of Jiaozuo Zhongxin Heavy Industry's XHP series multi-cylinder cone crusher and reasons to choose us

◎ The multi-cylinder hydraulic cone crusher operates based on the principle of laminated crushing and compression. It is designed with a fixed concave (bowl liner) and a moving mantle mounted on an eccentric shaft. During operation, the motor drives the eccentric assembly, causing the mantle to perform a continuous gyratory motion inside the crushing chamber.

◎ As raw materials enter the crusher from the top feed opening, they are compressed, squeezed, and crushed between the mantle and concave. The crushing force generated by the multi-cylinder hydraulic system ensures efficient particle reduction and a high crushing ratio. The material undergoes multiple stages of crushing as it moves downward through the chamber, resulting in a more uniform and cubical final product.

◎ The hydraulic cylinders provide precise adjustment of the discharge opening and offer overload protection, allowing uncrushable materials to pass through the chamber safely without causing damage to the machine. This advanced hydraulic control system improves operational reliability, production efficiency, and maintenance convenience.

What is the working principle of the XHP hydraulic cone crusher?

◎ Layered crushing, producing fine materials with good shape. The special crushing chamber, combined with high speed, significantly improves the crushing ratio and output, greatly increasing the cubic content of the finished product. In mineral processing, it reduces grinding and saves energy. In sand and gravel aggregates, it produces fewer needle-like and flaky materials and more cubic materials.

◎ Hydraulic protection and adjustment.When passing iron, the discharge opening automatically widens to allow iron blocks to pass smoothly. It automatically cleans when the machine is idle, reducing labor intensity. In addition to adjusting the discharge opening, the hydraulic motor allows the adjusting ring to be directly unscrewed for liner replacement or maintenance.

◎ The core component, the eccentric sleeve, is machined with a high-precision grinder and inspected by a three-coordinate measuring machine. Its precision is among the leading levels in China.

◎ The main components, including the spindle, drive shaft, and large and small bevel gears, are forged from high-quality alloy steel, ensuring durability.

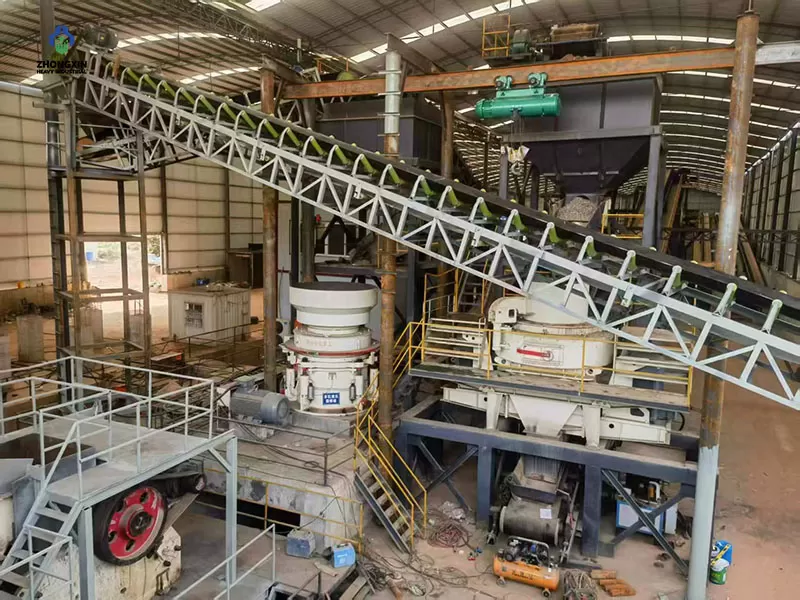

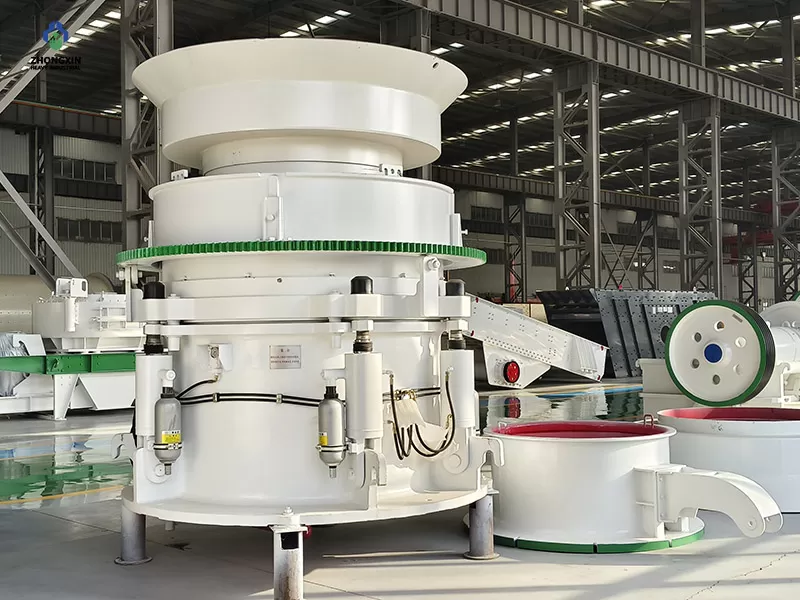

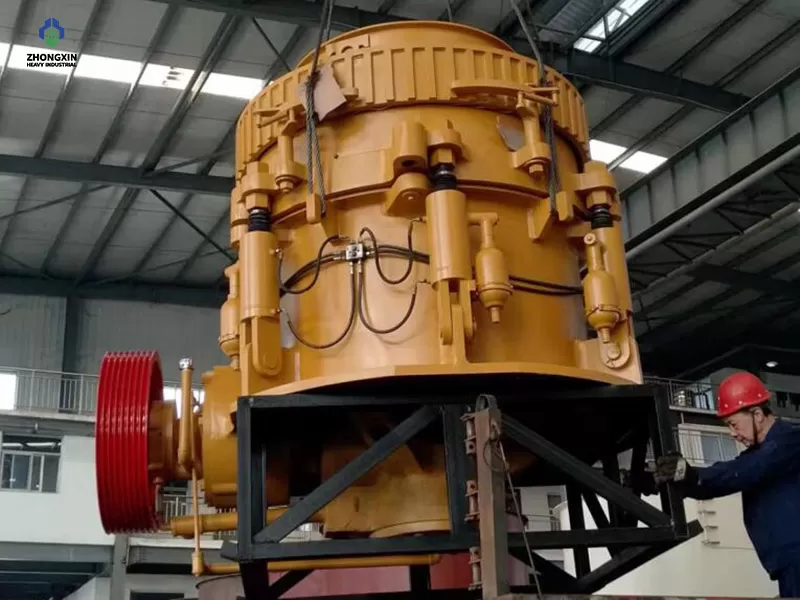

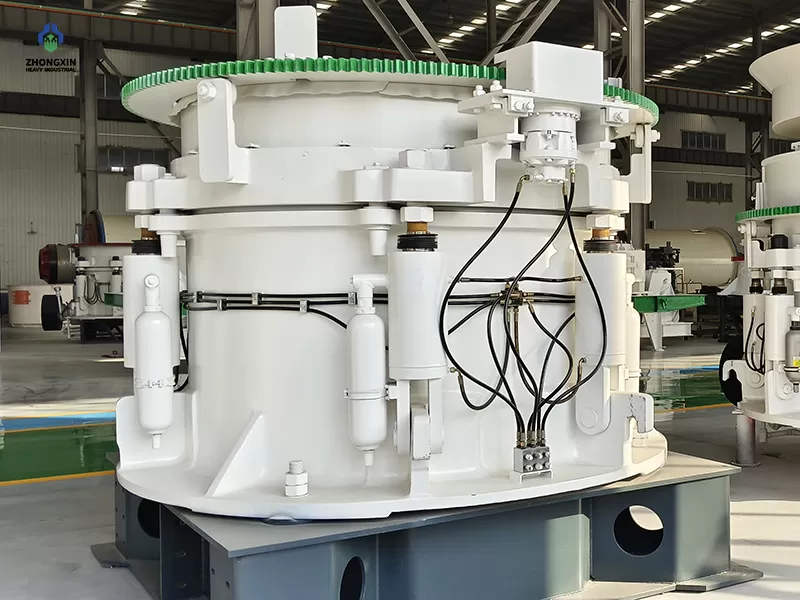

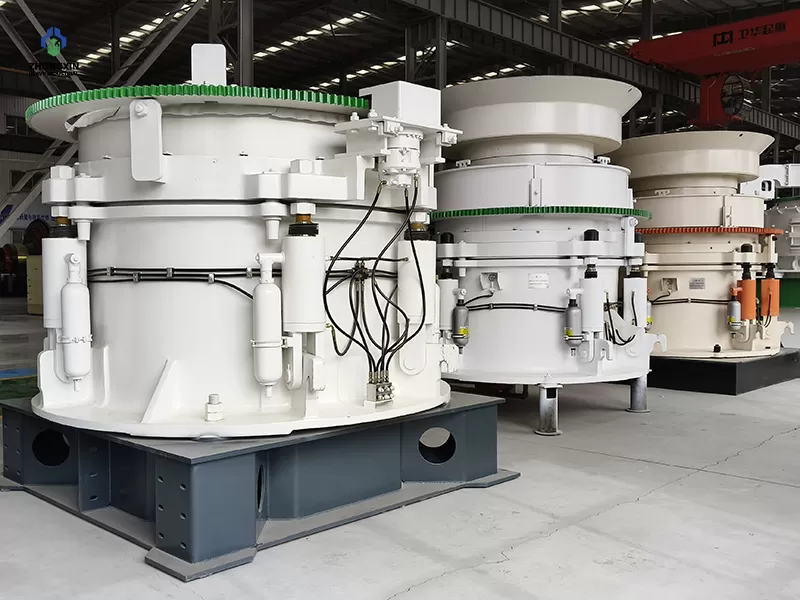

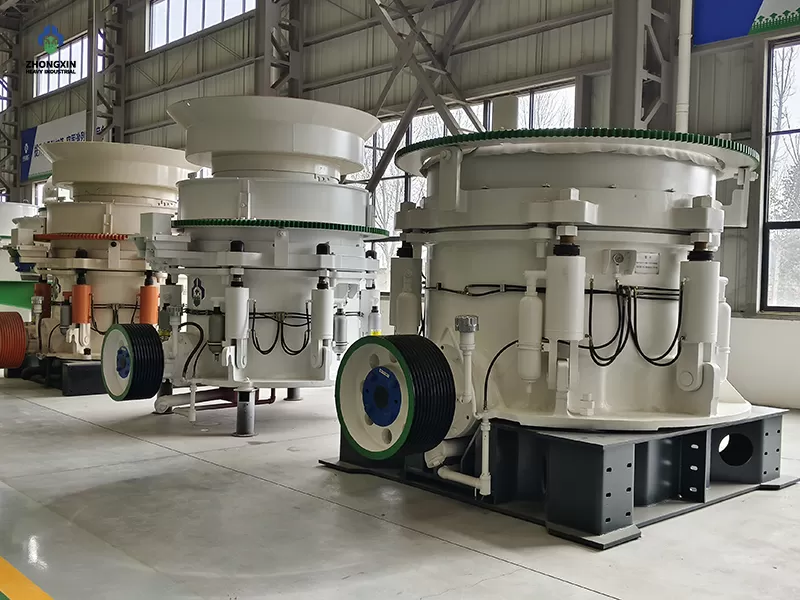

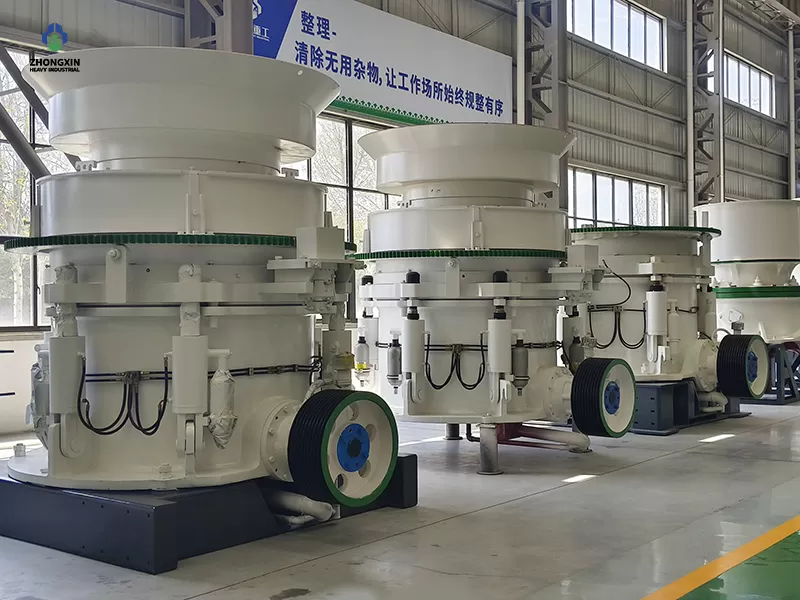

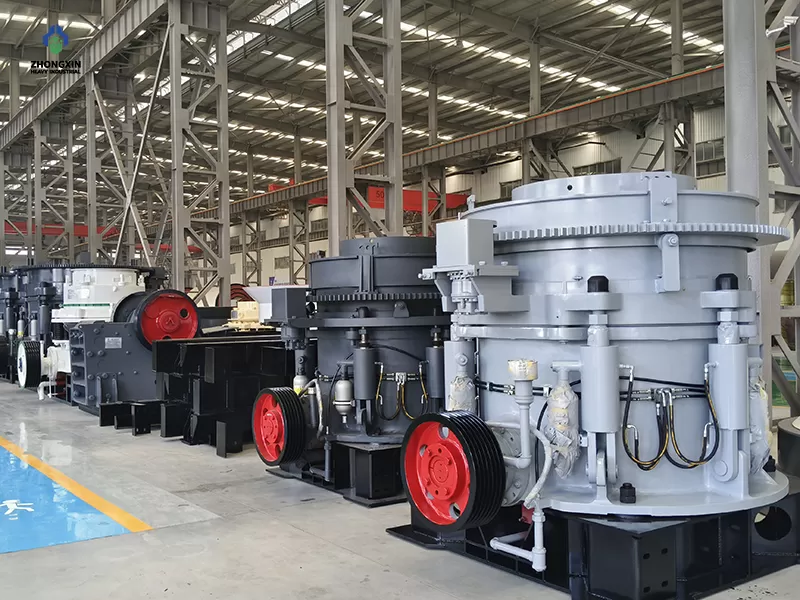

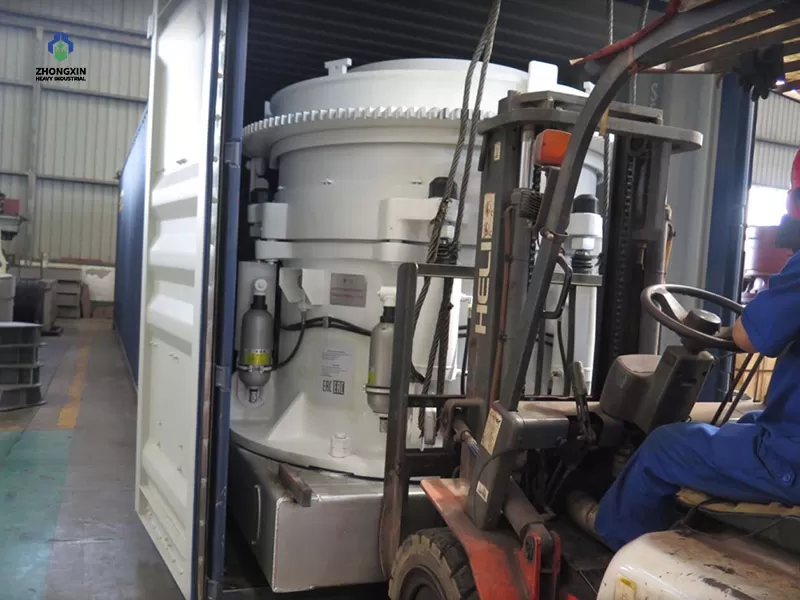

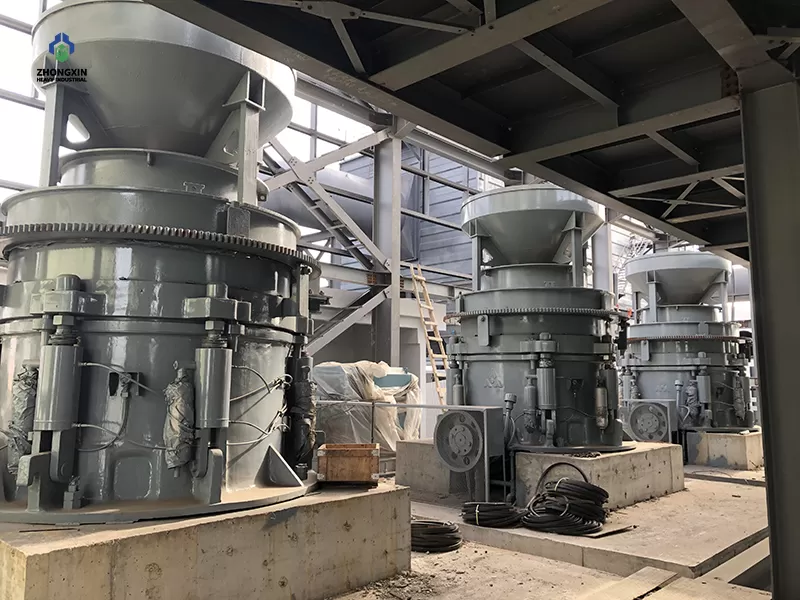

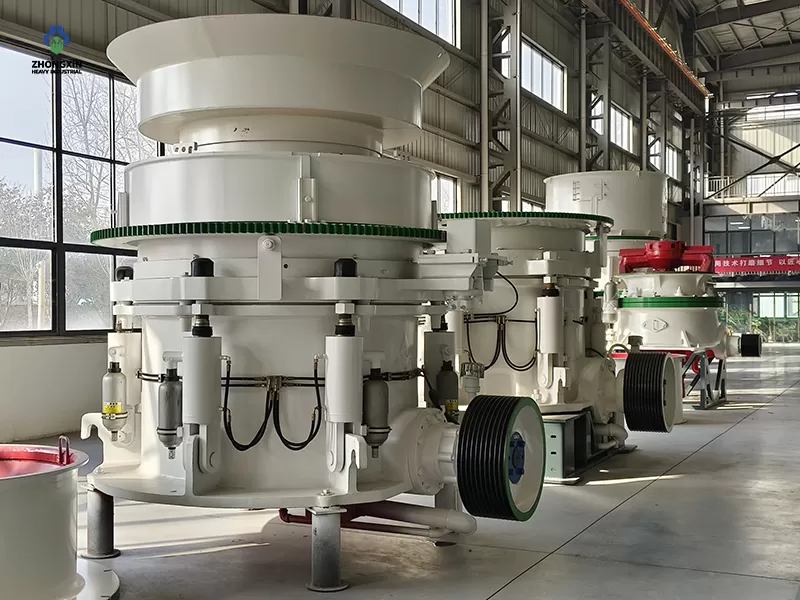

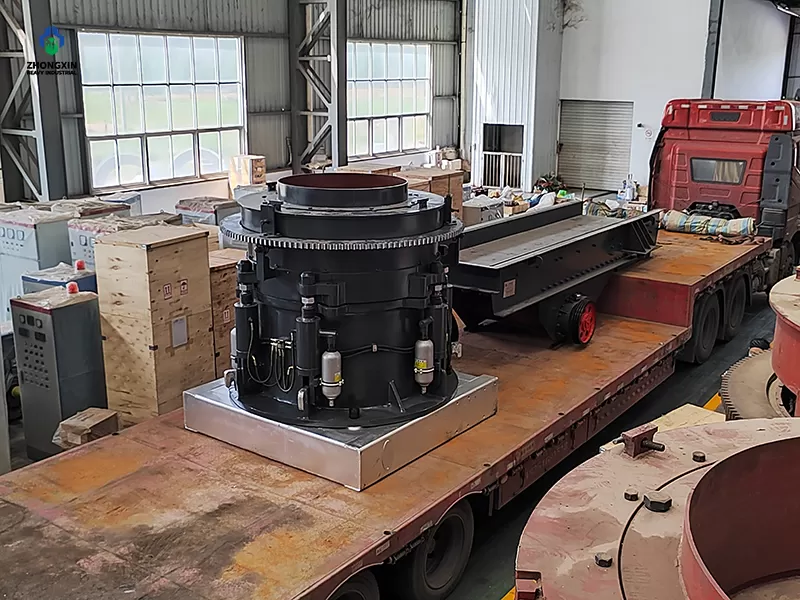

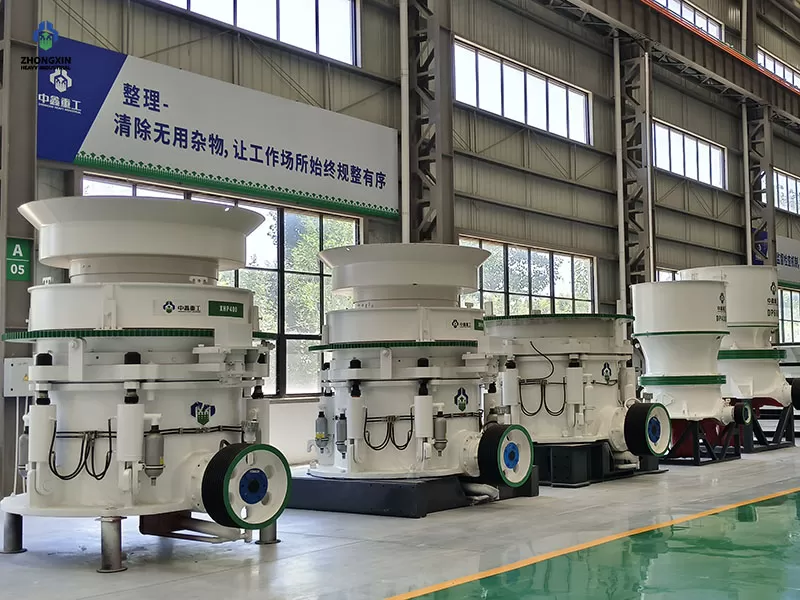

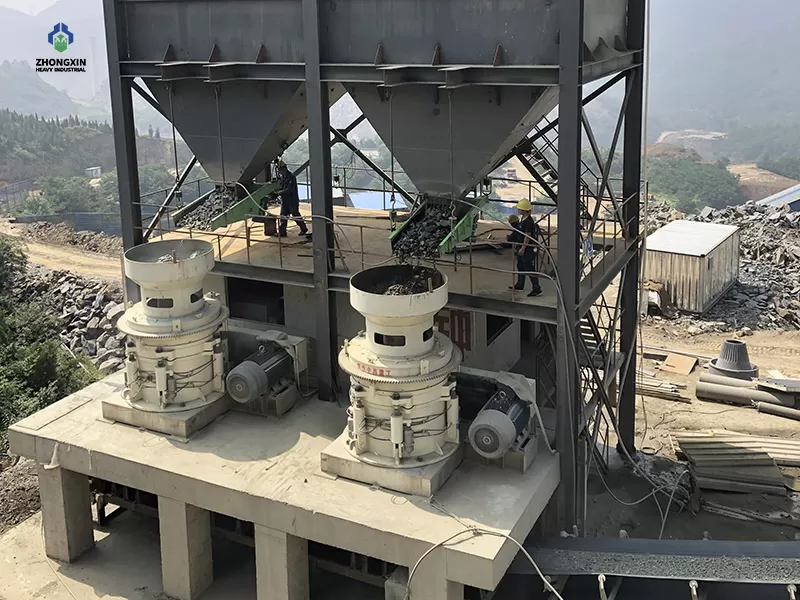

Product Photos

Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery
Industrial Machinery

Specification

ModelCavityStandard TypeShort TypePower
(kw)		Capacity
(t/h)		Weight
(t)
Feeding Size
(mm)		Min Discharging
Size (mm)		Feeding Size
(mm)		Min Discharging
Size (mm)
XHP200Super coarse----132-20090-25014
XHP200Coarse185197610132-20090-25014
XHP200Medium12517546132-20090-25014
XHP200Fine9513236132-20090-25014
XHP200Super Fine--105132-20090-25014
XHP300Super coarse23025--180-250115-44019.96
XHP300Coarse210207510180-250115-44019.96
XHP300Medium15015508180-250115-44019.96
XHP300Fine10510206180-250115-44019.96
XHP300Super Fine--206180-250115-44019.96
XHP400Super coarse29530--280-355140-63028.72
XHP400Coarse250259010280-355140-63028.72
XHP400Medium19520508280-355140-63028.72
XHP400Fine11014406280-355140-63028.72
XHP400Super Fine--306280-355140-63028.72
XHP500Super coarse33030--355-450175-79038
XHP500Coarse285259013355-450175-79038
XHP500Medium200205510355-450175-79038
XHP500Fine13316408355-450175-79038
XHP500Super Fine--356355-450175-79038
XHP800Super coarse35332--550-630260-120064.1
XHP800Coarse2973216013550-630260-120064.1
XHP800Medium2502510010550-630260-120064.1
XHP800Fine22016505550-630260-120064.1
XHP800Super Fine----550-630260-120064.1

Our Case

Jiaozuo Zhongxin® provides advanced crushing and screening equipment for industries involved in rock and mineral processing. From individual machines to mobile crushing units and complete processing plants, our solutions are designed to meet diverse production needs, supported by professional technical service and reliable after-sales support.

1000TPH Mountain Stone Crushing Plant In Middle East
1000TPH Mountain Stone Crushing Plant In Middle East
250-350 TPH Dolomite Crushing Plant
250-350 TPH Dolomite Crushing Plant
300 TPH Heavy-Duty Mountain Stone Crushing Plant in Indonesia
300 TPH Heavy-Duty Mountain Stone Crushing Plant in Indonesia

Common Problems

This section is designed to address the most pressing inquiries customers may have regarding the daily operation, maintenance, product advantages, and after-sales service of our crushing and screening equipment. Our aim is to help you gain a comprehensive understanding of our overall capabilities and enable you to make informed decisions for your projects.

Multi-cylinder cone crushers offer better stability and product shape for fine crushing, while single-cylinder models are more suitable for medium crushing with a simpler structure.

The hydraulic system of the multi-cylinder hydraulic cone crusher will automatically release pressure, allowing foreign objects to pass through the crushing chamber, and then automatically reset, protecting the main machine from damage.

Possible reasons include: loose or severely worn liners, uneven feeding, or abnormal main shaft or bearings.The machine should be stopped immediately for inspection.

This series of multi-cylinder hydraulic cone crushers is mainly suitable for crushing various ores and hard rocks, and can also be used in processes such as pebble sand production. It is suitable for various fields such as mining and construction aggregate processing.

Yes, it is guaranteed. Jiaozuo Zhongxin Heavy Industry has accumulated rich experience in the production and development of multi-cylinder hydraulic cone crushers through years of industry exploration. We focus on quality control, and this series of products has won market recognition for its stable performance. Through a complete production process and quality inspection system, we ensure that every piece of equipment meets industry standards and customer needs.

We can provide full-process supporting services, including: site planning, installation foundation drawings and process flow chart design, technical training, and sending professional technical personnel to the site to guide equipment installation and commissioning. We provide comprehensive support to help customers successfully put the multi-cylinder hydraulic cone crusher into production.

Yes. After the equipment is sold, the company will continue to provide technical support, promptly answering and guiding customers on any problems encountered during the use of the multi-cylinder hydraulic cone crusher; at the same time, we will provide relevant suggestions for equipment maintenance according to customer needs, helping to extend the service life of the equipment and ensure stable production.

Yes. When uncrushable materials enter the crushing chamber, the hydraulic system releases pressure automatically, allowing the material to pass through and protecting the crusher.
